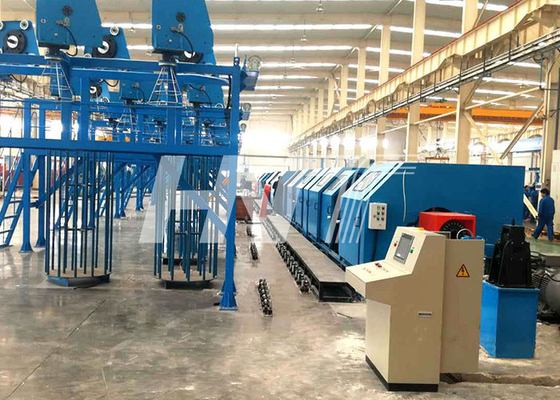

TXJ1100 Concentric Stranding Machine
Application:
Mainly used for copper, aluminum circular conductor stranding and drawing or fan-shaped conductor stranded pressure and steel core aluminum strand, aluminum alloy strand.
Main Technical Parameter:
1. Machine is designed for no-back-twist stranding and pressing of circular and sector shaped copper, Aluminum and ACSR conductors.
2. Machine with good frame structure rigidity, contributing to high running speed, fast and convenient loading, no turnover spool and etc.;
3. One wire per bobbin, plus simple and stable tension control, and the maximum operating line speed reaches 3 times that of the frame rigid stranding line;
4. Machine with automatic wire-break detection function will stop immediately when there is wire breaks;
5. PLC control is adopted, providing stable operation, reliable performance and high degree of automation.
6. Overload of take-up protection;
7. Low-air pressure protection;
8. Wire-breaking stop.
Double capstan device
Traction wheel diameter F2500mm
Max. Traction Speed 120m/min
Max. Traction 12T
Traction motor 110kW(AC variable frequency motor)
Double wheels, double drive, u-shaped groove, two wheels are installed in an inclined way to facilitate cable travel and ensure the cable surface is no conflict
With a pneumatic wire pressing device, ensure the cable is not loose when stopping, stranded pitch is stable.
Traction is driven by AC variable frequency motor separately, inverter frequency conversion control.
Technical parameter
| Application Dia. of single Copper wire | Φ1.7～Φ4.5mm |
| Application Dia. of single Alumium wire | Φ1.8～Φ5.0mm |
| Application Dia. of single Alumium Alloy | Φ1.7～Φ4.5mm |
| Max. stranded wire dia. | Φ45mm |
| Lay length | 40～350mm(step-less adjust) |
| Max rotate speed | 500rpm |
| Max line speed | 120m/min |
| Max rewinding speed | 150～200m/min |
| Bobbin size of cage | 1100×500×200mm |
| Rewinding Pay-off | Φ600×Φ1060×H1730mm |
| Cage rotate motor | AC |
