Tubular Type Stranding Machine is suitable for high-speed stranded 7/12/19 round, compressed copper and aluminum conductor or steel wire with 100% back twist movement.
6 bobbin, 6+12 bobbin,bearings type and support by big bearing suitable for high speed rotation.
Non-metallic taping head and steel taping head are available.
Equipped with wire-break detection device to ensure machine will stop automatically if any wire breaks.

PLC+HMI Electrical control system.
The machine with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.
steel plate splicing welding and setting out frame, CNC cutting plate, using bending process, less welding position, large bearing capacity, boring after overall annealing, high precision, durable and unchangeable.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed	500 rpm	500 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm

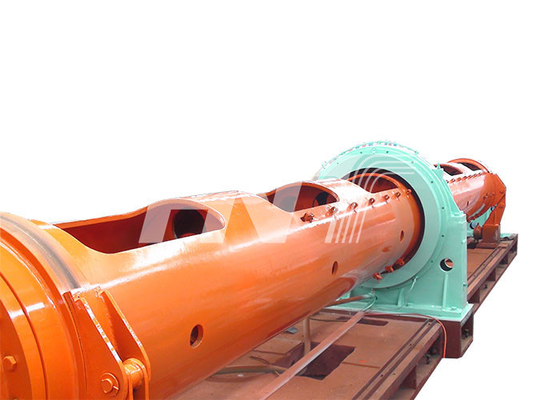

500m/Min Tubular Stranding Machine For Cable And Wire 0

Tags:

Big Bearing Tubular Stranding Machine,

PND630 Tubular Strander,

500m/Min Tubular Stranding Machine

Steel Aluminium Copper Wire Tubular Strander Machine 700m/Min

Contact Now

500m/Min Tubular Stranding Machine For Cable And Wire

Contact Now

24b Tubular Stranding Machine High Speed With 100% Back Twist

Contact Now

High Speed Tubular Stranding Machine For Stranding 7/12/19 Round Or Sector Shape Cable

Contact Now

150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander

Contact Now

PRODUCTS DETAILS

Products

Wire Stranding Machine

Rigid Stranding Machine

Tubular Stranding Machine

Double Twist Stranding Machine

Cable Extrusion Line

Cable Packing Machine

Shrink Packaging Machine

Wire Take Up Machine

Wire Payoff Machine

Armoring Machine

Caterpillar Capstan

Wire Accumulator

Rewinding Lines

Cable Materials

500m/Min Tubular Stranding Machine For Cable And Wire

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Application:

Copper, Steel,Al Stranding

Stranding Pitch:

40-448

Max. Rotation Speed:

500RPM

Control:

PLC

Application Bobbin:

φ500, φ630mm

Line Speed:

Max. 500m/min

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

500m/min Tubular Stranding Machine

500RPM Tubular Stranding Machine

cable and wire Tubular Stranding Machine

Product Description

High Speed Tubular Stranding Machine:

Tubular Type Stranding Machine is suitable for high-speed stranded 7/12/19 round, compressed copper and aluminum conductor or steel wire with 100% back twist movement.
6 bobbin, 6+12 bobbin,bearings type and support by big bearing suitable for high speed rotation.
Non-metallic taping head and steel taping head are available.
Equipped with wire-break detection device to ensure machine will stop automatically if any wire breaks.

PLC+HMI Electrical control system.
The machine with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.
steel plate splicing welding and setting out frame, CNC cutting plate, using bending process, less welding position, large bearing capacity, boring after overall annealing, high precision, durable and unchangeable.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed	500 rpm	500 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm
