Casting baseplate to ensure high stable speed running.
Stranding barrel has big bearing supported, running stably with long use life.
Improved bobbin clamping structure, more stable and reliable bobbin clamp.
Non-metallic taping head and steel taping head are available.
Equipped with wire-break detection device to ensure machine will stop automatically if any wire breaks.
PLC+HMI Electrical control system.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm Steel : Ø 1.3-3.5mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm Steel : Ø 1.3-3.5mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed7	700 rpm	700 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm

Aluminum Copper Wire Tubular Strander Machine Conductor Stranding Machine 700m/Min 0

Tags:

Big Bearing Tubular Stranding Machine,

PND630 Tubular Strander,

500m/Min Tubular Stranding Machine

Steel Aluminium Copper Wire Tubular Strander Machine 700m/Min

Contact Now

500m/Min Tubular Stranding Machine For Cable And Wire

Contact Now

24b Tubular Stranding Machine High Speed With 100% Back Twist

Contact Now

High Speed Tubular Stranding Machine For Stranding 7/12/19 Round Or Sector Shape Cable

Contact Now

150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander

Contact Now

PRODUCTS DETAILS

Products

Wire Stranding Machine

Rigid Stranding Machine

Tubular Stranding Machine

Double Twist Stranding Machine

Cable Extrusion Line

Cable Packing Machine

Shrink Packaging Machine

Wire Take Up Machine

Wire Payoff Machine

Armoring Machine

Caterpillar Capstan

Wire Accumulator

Rewinding Lines

Cable Materials

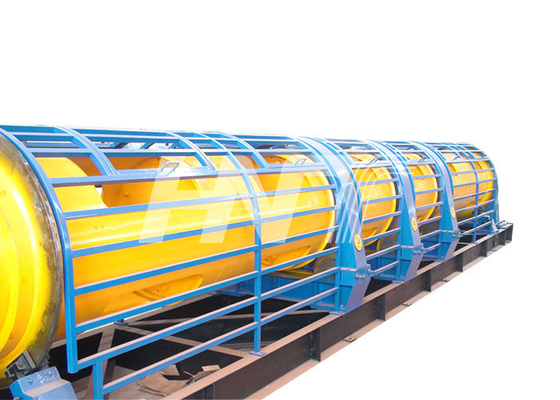

Aluminum Copper Wire Tubular Strander Machine Conductor Stranding Machine 700m/Min

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Application Cooper/Al Wire Dia.:

φ1.2-5.0mm

Application Steel Wire Dia.:

φ1.3-3.5mm

Control:

PLC+HMI

Application Bobbin:

φ500, φ630mm

Line Speed:

Max.700m/min

Wire Material:

Steel,Copper,Aluminum

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

OPGW Copper wire Tubular Strander Machine

Aluminum Copper wire Tubular Strander Machine

700m/min Conductor Stranding Machine

Product Description

High Speed Tubular Stranding Machine:

Application:

Steel wire, Aluminum strand, copper strand
Control Cable
ACSR (Aluminum conductor steel reinforced)
OPGW

Description:

Casting baseplate to ensure high stable speed running.
Stranding barrel has big bearing supported, running stably with long use life.
Improved bobbin clamping structure, more stable and reliable bobbin clamp.
Non-metallic taping head and steel taping head are available.
Equipped with wire-break detection device to ensure machine will stop automatically if any wire breaks.
PLC+HMI Electrical control system.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm Steel : Ø 1.3-3.5mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm Steel : Ø 1.3-3.5mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed7	700 rpm	700 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm
