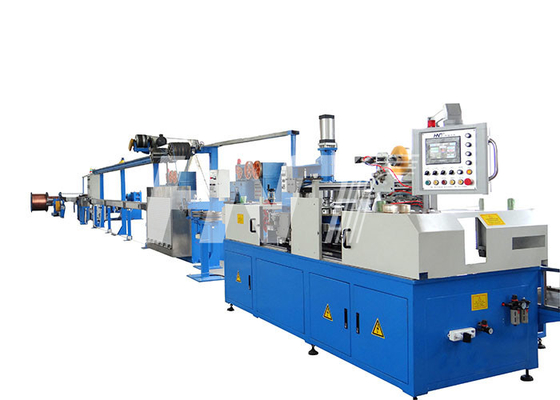

THHN THWN Building Wire Extrusion Line Electric Wire Making Machine

THHN THWN Building Wire Extrusion Line Electric Wire Making Machine
Basic Properties
Place of Origin: Wuxi
Brand Name: HNT
Certification: ISO9001:2008, CE, High-tech enterprise
Model Number: φ70mm Extrusion Line
Trading Properties
Minimum Order Quantity: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Tags:

PV cable extrusion line

double layer co extrusion machine

70mm PP Extrusion Machine
Product Summary
Building Wire Insulation Line: The EX series are specifically designed for the building wires. Specific screws and barrels can be applied for PVC, PE, LSNH, Teflon, Nylon and etc. The extrusion crosshead can be selected from center-adjusted or adjustless with function of strip color and skin color . ...
Product Custom Attributes
Highlight

THHN Building Wire Extrusion Line

,

THWN Cable Extrusion Line

,

THWN Electric Wire Making Machine

Product Description
Detailed Specifications & Features

Building Wire Insulation Line:

  1. The EX series are specifically designed for the building wires.
  2. Specific screws and barrels can be applied for PVC, PE, LSNH, Teflon, Nylon and etc.
  3. The extrusion crosshead can be selected from center-adjusted or adjustless with function of strip color and skin color .
  4. Crosshead clampers of EX series are double-tooth rod chain driven, and other fixed parts has the function of auto-centering.
  5. Operation plate of main control box is mounted with human-computer interface and also traditional button switch to ensure operational simplicity.
  6. Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).​

Extrusion Type:

THHN THWN Building Wire Extrusion Line Electric Wire Making Machine 0

Technical parameter:

Model Screw parameter Max Extrude capacity (kg/hr) Finished Outer Diameter (mm)
Diameter (mm) L/D Speed (RPM) PVC LDPE LSNH
EX-40G 40 26:1 120 24 14   0.8-3
EX-50G 50 26:1 120 60 35   1-6
EX-60G 60 26:1 120 100 60 22 2-8
EX-70G 70 26:1 120 160 130 36 3-15
EX-80G 80 26:1 110 220 180 48 5-20
EX-90G 90 26:1 100 310 240 65 8-25
EX-100G 100 25:1 90 400   90 10-30
EX-120G 120 25:1 90 550     15-40
EX-150G 150 25:1 60 900 550
EX-200G 200 25:1 60 1300 1100 750



THHN THWN Building Wire Extrusion Line Electric Wire Making Machine 1THHN THWN Building Wire Extrusion Line Electric Wire Making Machine 2
