The purpose of this production line is the application of a helical layer of copper or aluminium wires over a cable core.
The Synchronal control for separate motorized taping machine consist of PLC and Touch screen.
It's easy to operate by setting-up of all parameters on touch screen.
All process parameters can be recollected.
Unique program and date collection system ensure machine running stable and reliable.
The precision of lay length is less than 3% when energency stop and less than 2% when normal stop of line.

Technical Information:

Type	600/2	800/2
cable diameter range	20mm to 60mm	60mm to 160mm
Taping Overlap	0-50%	0-50%
Rotate Speed	500r/min	500r/min
Taping Pitch	9-160mm	9-160mm
Taping Tension	2.5-15daN	2.5-15daN
Motor	7.5KW	7.5KW
Material of Tape	Water Proof Tape, Copper Tape, Buffering Tape, Plastic Tape etc.

Constitute

Payoff	1 set
Section to section device	1 set
Taping Machine	2 set
Meter Counter	1 set
Belt Caterpillar	1 set
Take-up	1 set
Electric Control Ststem	1 set

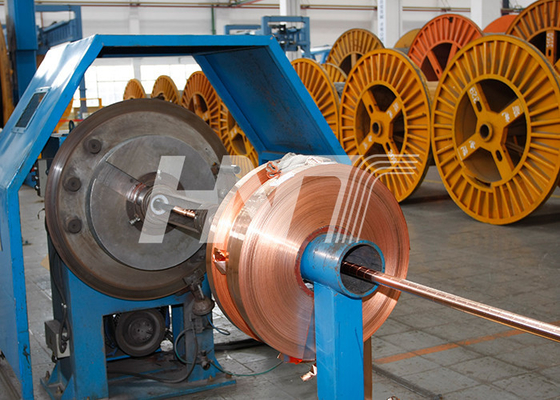

High Speed Copper Tape Armouring Machine for Power Cable 0

High Speed Copper Tape Armouring Machine for Power Cable 1
