Motorized Dual Reel Wire Take Up Machine Speed Detection 630mm Inner Diameter
  • name

Motorized Dual Reel Wire Take Up Machine Speed Detection 630mm Inner Diameter

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Structure:
Double Reel Type
Wire Takeup:
Control By Motor
Pintle Clamp:
Pneumatic
Traverse:
Motor Control
Takeup:
Motorized
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

Motorized Wire Take Up Machine

,

double Reel Take Up Machine

,

Motorized Dual Take Up

Product Description

Dual Reel Take-up



Description:

  1. Structure type: Double reel takeup
  2. Bobbin shaft lifting mode: electric lifting;
  3. Pintle Clamp type: Cylinder;
  4. Wire Takeup power: AC motor + frequency converter + reducer;
  5. Brake: pneumatic brake;
  6. Speed detection can work with the line speed in synchronization.​

- Double reel Take-up Specification:

Model Inner diameter (mm) Outer diameter (mm) Max load (kg)
PF-1000M 630 - 1000 300 - 750 1500
PF-1250M 800 - 1250 450 - 950 2500
PF-1600M 1000 - 1600 600 - 1200 4000

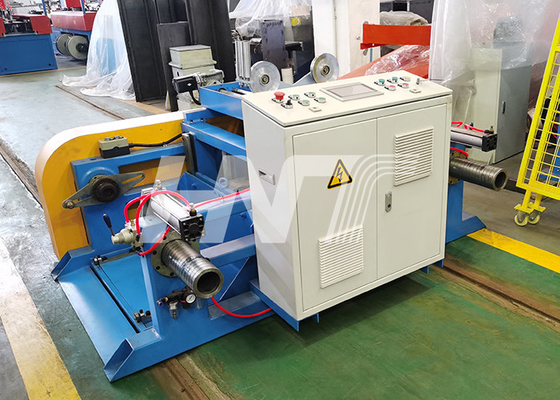

Motorized Dual Reel Wire Take Up Machine Speed Detection 630mm Inner Diameter 0

Motorized Dual Reel Wire Take Up Machine Speed Detection 630mm Inner Diameter 1

Tags:

Movable Cable Spooling Machine,

A Type Cable Spooling Machine,

wire pay off machine
