Wire Insulation Line with Cable Coiling Machine

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Application:
Wire Insulation
Extruder Model:
φ80mm Extrusion
Line Speed:
According To Takeup Max. 1000m/min
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Plastic Processed:
PVC,PE,PP,HDPE
Warranty:
1 Year
Highlight:

Cable Coiling Machine

,

Cable Coiling Machine Insulation Line

Product Description

Wire Insulation Line with Cable Coiling Machine:

  1. Application for the building wire & electric wire inusulation;
  2. Line Connect with Cable coiling and robot stacking system;
  3. Line speed Max. 300m/min;
  4. 2 Insualtion line with Packing machine connect with robot stacking system to save labor cost;
  5. Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
  6. The extrusion crosshead of EX series can be selected from center-adjusted or adjustless, strip color and skin color can be adopt.

Technical parameter:

Model Screw parameter Max Extrude capacity (kg/hr) Finished Outer Diameter (mm)
Diameter (mm) L/D Speed (RPM) PVC LDPE LSNH
EX-40G 40 26:1 120 24 14   0.8-3
EX-50G 50 26:1 120 60 35   1-6
EX-60G 60 26:1 120 100 60 22 2-8
EX-70G 70 26:1 120 160 130 36 3-15
EX-80G 80 26:1 110 220 180 48 5-20
EX-90G 90 26:1 100 310 240 65 8-25
EX-100G 100 25:1 90 400   90 10-30
EX-120G 120 25:1 90 550     15-40
EX-150G 150 25:1 60 900 550
EX-200G 200 25:1 60 1300 1100 750

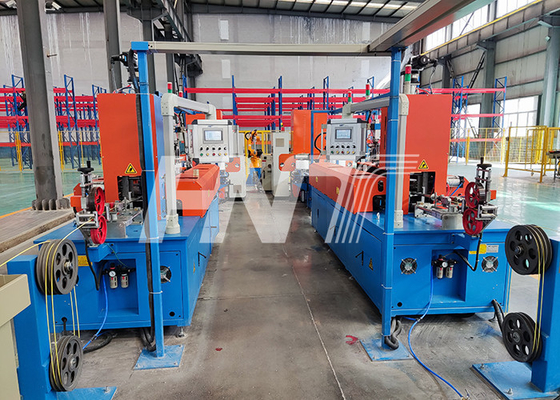

Wire Insulation Line with Cable Coiling Machine 0Wire Insulation Line with Cable Coiling Machine 1

Wire Insulation Line with Cable Coiling Machine 2





Tags:

400m/Min Cable Extrusion Line,

1000m/Min Cable Extrusion Line,

70mm PP Extrusion Machine
