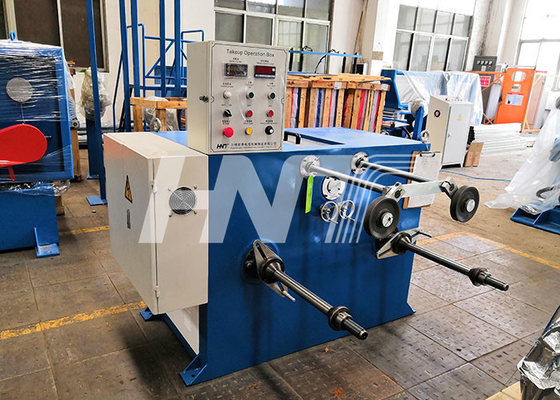

Dual Reel Takeup Wire Spooling Machine with Double Shaft
Dual Reel Takeup Wire Spooling Machine with Double Shaft
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Dual Reel Take-up Description: The Takeup can work with extrusion line, coiling and packing machine, rewinding machine, ect... Double reel take up; Pintle Clamp type: Cylinder; Wire Takeup power: AC motor + frequency converter + reducer; Wire takeup speed control: automatically control the motor ...
Product Custom Attributes
Highlight
Double Shaft Take up machine
,Dual Reel Take up machine
,Dual Reel Takeup machine
Bobbin Lifting:
Electric Lifting
Pintle Clamp:
Cyliner
Application Bobbin:
φ800mm
Brake:
Pneumatic Brake;
Takeup:
Motorized
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Product Description
Detailed Specifications & Features
Dual Reel Take-up
Description:
- The Takeup can work with extrusion line, coiling and packing machine, rewinding machine, ect...
- Double reel take up;
- Pintle Clamp type: Cylinder;
- Wire Takeup power: AC motor + frequency converter + reducer;
- Wire takeup speed control: automatically control the motor wire feeding speed;
- Brake: pneumatic brake;
- Control system with PLC + HMI for the speed detection so that the whole system work with the line speed in synchronization.
- Double reel Take-up Specification:
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
| PF-1000M | 630 - 1000 | 300 - 750 | 1500 |
| PF-1250M | 800 - 1250 | 450 - 950 | 2500 |
| PF-1600M | 1000 - 1600 | 600 - 1200 | 4000 |
