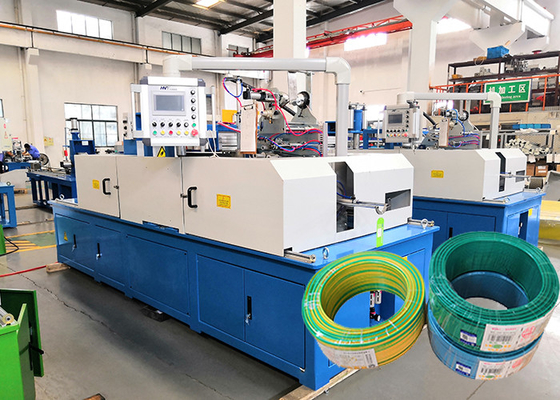

Automatic C1860 Steel Wire Coiling Machine Tp600 Cable Coil Machine
Automatic C1860 Steel Wire Coiling Machine Tp600 Cable Coil Machine
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Automatic Cable Coiling And Banding Machine Machine Main Feature: 1. Connect with the extrusion line for the non-stop cable coiling and binding operation. 2. Machine with Auto holding arm adjust system after finished coiling. 3. Machine can be connected with labeling machine. 4. Can also choose ...
Product Custom Attributes
Highlight
Automatic Steel wire coiling machine
,c1860 Steel wire coiling machine
,tp600 cable coil machine
Usage:
Automatic Coiling & Banding
Banding Point:
4 Point
Line Speed:
200m/min
Width Of Tape:
15mm
Application Wire Dia.:
Max. 15mm
Control Method:
Touch Screen + PLC
Product Description
Detailed Specifications & Features
Automatic Cable Coiling And Banding Machine
Machine Main Feature:
1. Connect with the extrusion line for the non-stop cable coiling and binding operation.
2. Machine with Auto holding arm adjust system after finished coiling.
3. Machine can be connected with labeling machine.
4. Can also choose robot stacking system for full automatic running of the packing.
5. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.
6. Operation control Method:Touch screen+PLC；
7. Machine design Line speed:Max200M/min;
Technical Parameter:
| Model | Coil Height (mm) | Coil O.D (mm) | Coil I.D (mm) | Cable Dia. (mm) |
Packing Material |
Speed | Robot Auto Stacking |
| C1246 | 50-100 | 240-460 | 120-200 | 1-10 | PVC | 2-2.6Coil/M | Can be choosed |
| C1860 | 60-180 | 200-600 | 180-250 | 5-15 | PVE | 1.5-2 Coil/M | Can be choosed |
