PVC PVE Wire Coil Wrapping Machine C1246 Steel Coil Wrapping Machine

PVC PVE Wire Coil Wrapping Machine C1246 Steel Coil Wrapping Machine
Basic Properties
Place of Origin: Wuxi
Brand Name: HNT
Certification: ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Tags:

Cable Packing Machine

PVE wire coil wrapping machine

180mm Cable Packing Machine
Product Summary
Cable Wrapping Machine Machine Main Feature: Connect with the extrusion line for the non-stop cable coiling and wrapping operation. Machine with Auto holding arm adjust system after finished coiling. With Auto labeling machine, saving labor cost,safe and convenience. Can connect with robot stacking ...
Product Custom Attributes
Highlight

PVC wire coil wrapping machine

,

PVE wire coil wrapping machine

,

c1246 steel coil wrapping machine

Max. Coil OD:
φ600mm
Coil Inner ID:
Max. φ300mm
Function:
Coiling & Wrapping
Wrapping Material:
PVC, PVE
Application:
Cable Coiling And Wrapping
Warranty:
One Year
Product Description
Detailed Specifications & Features

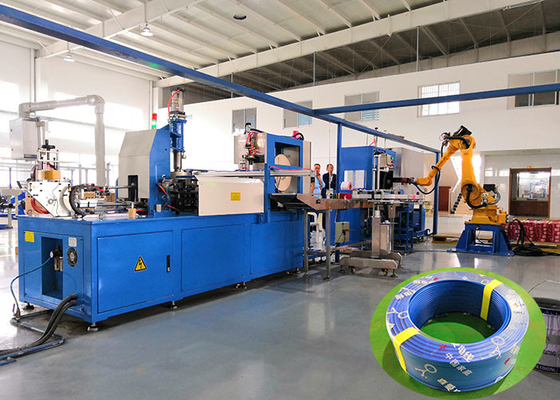

Cable Wrapping Machine



Machine Main Feature:

  1. Connect with the extrusion line for the non-stop cable coiling and wrapping operation.
  2. Machine with Auto holding arm adjust system after finished coiling.
  3. With Auto labeling machine, saving labor cost,safe and convenience.
  4. Can connect with robot stacking system.
  5. Microcomputer memory can store 99 different specifications of wire coil. When you need to change the productspecifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately.
  6. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling.
  7. Whole machine electrical circuit control: Mitsubishi microcomputer programmable controller (PLC).

Technical Parameter:

Model Coil Height (mm) Coil O.D (mm) Coil I.D (mm) Cable Dia. (mm)

Packing

Material

 Speed Robot Auto Stacking
TP460 60-100 240-460 170-220 4-12 PVC 2-2.6Coil/M Can be choosed
TP600 80-180 320-600 200-300 5-20 PVE 1.5-2 Coil/M Can be choosed





PVC PVE Wire Coil Wrapping Machine C1246 Steel Coil Wrapping Machine 0PVC PVE Wire Coil Wrapping Machine C1246 Steel Coil Wrapping Machine 1
