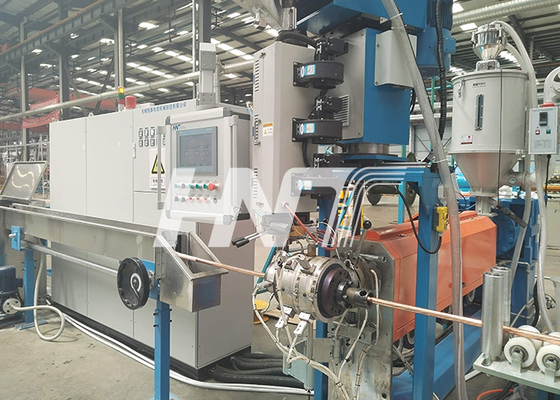

Power Cable Extrusion Line Wire Machine Single Screw

Power Cable Extruder Machine, Cable extrusion line, wire machine

Extrusion is a process used to create objects with a fixed cross-sectional profile. A material is pushed through a die with the desired cross-section. The extrusion process can be done with the material hot or cold. In a subsequent stage, molten plastic is applied to the entire circumference of the wire, forcing it to adhere to the structure of the wire or cable. Extrusion is most commonly used for wire insulation and to form the outer sheath of the cable.

1. We design the line configurations for different production speeds and spaces according to your requirements
2. Line can be equipment with tandem extruder for sheathing process
3. Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, LDPE, MDPE, HDPE, HFFR and etc.
4. The extrusion crosshead of EX series can be selected from center-adjusted or adjustless, strip color and skin color can be adopt.
5. Line can connect with portal takeup and payoff,and belt type caterpillar.
6. Crosshead clampers of EX series are double-tooth rod chain driven, and other fixed parts has the function of auto-centering.
7. Electric circuit control is from Siemens programmable controller(PLC).
8. Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).

Extrusion Type:

Technical parameter:

Extruder series:
