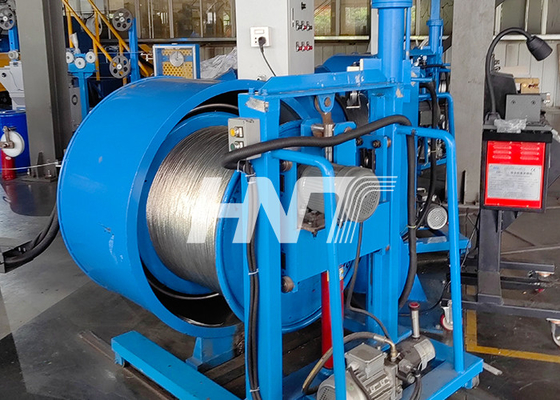

High Speed Flyer Payoff Machine for Cable and Wire
Machine description:
According customers' requirements can be made single flyer or double flyer payoff;
The flyer Pay-off is designed for continuous, silent and smooth flow of wire at high speed production. Special design for the fly-off cone geometry in order to minimize stress on the wire when paying-off at high speeds. Cast iron or steel material can be choosed.
The pay-off comprises of single or double cones and central wire guide is include. The inside surface of the cones are machined and have a longitudinal slot on one side to enable wire fly-off change over from one cone to the other for continuous production. Each cone has a reel holder with a driven shaft. The reel holder hangs on the cone to free the loading trolley.
Technical Parameter:
| Model | Inner diameter (mm) | Outer diameter (mm) |
| 800M | 630 - 800 | 475 - 600 |
| 1000M | 800 - 1000 | 600 - 750 |
| 1250M | 1000 - 1250 | 750 - 950 |
