Rigid Stranding Lines For Single Copper Or Single Aluminum Wires
Rigid Stranding Lines For Single Copper Or Single Aluminum Wires
Basic Properties
Place of Origin:
China
Brand Name:
HNT
Certification:
CE
Model Number:
630
Trading Properties
Minimum Order Quantity:
1
Payment Terms:
L/C, T/T
Product Summary
Rigid Stranding Lines Rigid stranding lines for single copper or single aluminum wires, making compacting/non-compacting, round/sector, and straight/pre-spiral conductors. Main technical parameter: Category Equipment Quantity Payoffs PND1600 pay-off device (column - type) 1 set PND630 pay-off device ...
Product Custom Attributes
Highlight
Single Aluminum Wires Stranding Lines
,Single Copper Rigid Stranding Lines
,Single Wires Rigid Stranding Lines
Usage:
Stranding,Power Cable And Conductor Stranding,Rigid Frame Cable Wire Stranding Machine
Color:
Customized
Name:
Rigid Frame Wire Cable Stranding Machine,Cable Making Machine,High Quality Rigid Frame Stranding Machines .
Application:
Making Cable,stranding Wire And Cable,Copper Or Aluminum Conductors Stranding
Wire Material:
Copper,aluminum,steel,etc.
Voltage:
As Customers' Request
Plc:
SIEMENS,optional
Warranty:
12 Months
Function:
Stranding,stranding Wire And Cable
Cage Rotate Speed:
40-156r/min.
Product Name:
Rigid Frame Stranding Machine
Take-up Reel:
PND1600-PND3150
Type:
Side Bottom Autol Loading,Automatic Machine
E-twist Pitch:
500-2400mm
Range Of Pitch:
40-120mm
Product Description
Detailed Specifications & Features

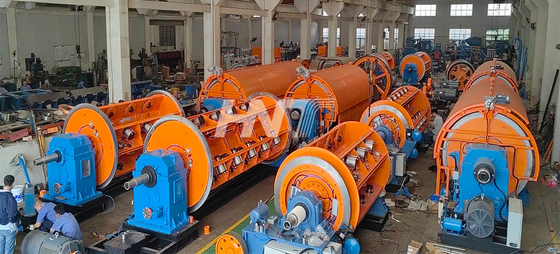

Rigid Stranding Lines
Rigid stranding lines for single copper or single aluminum wires, making compacting/non-compacting, round/sector, and straight/pre-spiral conductors.
Main technical parameter:
| Category | Equipment | Quantity |
| Payoffs | PND1600 pay-off device (column - type) | 1 set |
| PND630 pay-off device (end cone - type) | 1 set | |
| Stranding Cage Model | 6 Bobbin Cage | 1 set |
| 12 Bobbin Cage | 1 set | |
| 18 Bobbin Cage | 1 set | |
| 24 Bobbin Cage | 1 set | |
| 30 Bobbin Cage | 1 set | |
| Loading & Unloading System | Automatic side(or side - bottom) loading & unloading system | 5 sets ( 1 set for each cage) |
| Auxiliary Equipment | Close die & compact head | 5 sets ( 1 die and 2 compact heads for each cage) |
| Meter counter | 1 set | |
| Capstan | Dual capstan Φ2500 | 1 set |
| Take - ups | PN 1600 - 3150 portal-type take - up device with traversing | 1 set |
| Safety System | Safety cover | 1 set |
| Controlling System | HNT synchronous electrical control system | 1 set |
| Single Wire Diameter | Maximum Conductor Section | Line Speed | Maximum Rotating Speed (Empty / Full) |
|
Cu ø 1.5 - ø 4.5 mm |
Round compact Cu 800 mm2 |
6 - 60 |
6 Bobbins 220/210 rpm |
| Stranding Pitch | Pre - spiral Rotating Lay Length | Line Center Height | Pay - off Bobbin in Cage |
| 34 - 1024 mm | 800 - 2000 mm | 1100 mm |
PND630 |
