Fluorine Plastic (TEFLON) Extrusion
Fluorine Plastic (TEFLON) Extrusion
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Fluorine Plastic (TEFLON) Extrusion: The Teflon extrusion series is designed for electronic wire & cable extrusion, applicable materials include fluorine plastic such as FEP,FPA,ETFE and etc. Main Parts Brand: Motor: Siemens brand. Operation System:Touch Screen+PLC. Temperature control table: Japan ...
Product Custom Attributes
Highlight
TEFLON Extrusion
,Fluorine Plastic Extrusion
Extrusion Material:
FEP,FPA,ETFE And Etc.
Motor:
Siemens Brand.
Operation System:
Touch Screen+PLC.
Emperature Control:
Japan RKC
Wire Dia.:
Max. 8mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Product Description
Detailed Specifications & Features

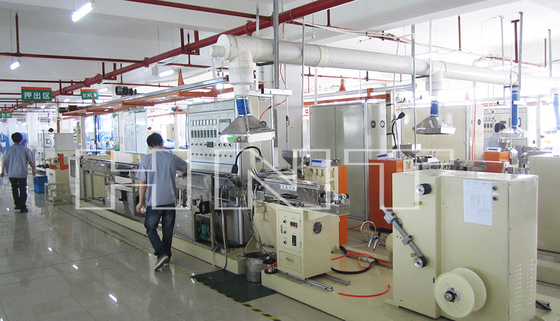

Fluorine Plastic (TEFLON) Extrusion:
The Teflon extrusion series is designed for electronic wire & cable extrusion, applicable materials include fluorine plastic such as FEP,FPA,ETFE and etc.
Main Parts Brand:
- Motor: Siemens brand.
- Operation System:Touch Screen+PLC.
- Temperature control table: Japan RKC.
- Low-voltage electrical brand: Schneider.
Electrical Control System:
- Power control: main switch and each branch switch control;
- Motor operation control: frequency converter separate drive control each motor;
- Indicator control: each temperature control accurately controls each temperature zone;
- Automatic process control: controlled by operation buttons;
- Auxiliary parts linkage control: calibrater, spark tester etc. complete combinate to the whole line, high automation, diameter setting, diameter control, automatic control, high display automation;
- Electric heating temperature Controller(Japan RKC): within range of ±2℃, accuracy control and measuring temperature points, to fit different technological requirements;
- Electric heating ampere meter: display heating of each zone, easy to check;
- cooling fan control: control by RKC temperature-controlled meter, keep temperature curve to straightness;
- Extrusion and extraction linkage ratio, single-action control, quick response and timely response; and are controlled by a selection switch, which is convenient and rapid, and linkage adjustment ratio is adjusted by a knob, with fast response speed and timely response.
- Each part action indicate light: indicate light to be markedness, to show real time working condition;
- Cabinet inside floodlight: open cabinet door, the light auto lighten, be easy to make operation, and be beneficial to be safe;
- Cabinet fan: close the cabinet door,the fan automatic work, to keep electric components inside the cabinet working safety;
- Counter, control loop: counter receive pulse signal from meter counter, proportion of code length and pulse count can freewill adjustment, easy for counting length, meanwhile with forecasting function to make operation easily;
- Suction feeder, drying hopper, no material alarm and other control: automatic suction material, automatic control of material dryness, no material automatic alarm, effectively increase the accuracy of the work and greatly reduce the labor intensity of the operator.
Technical Parameter:
| Model | Screw diameter | Ratio | Max line speed | Extrusion Amount | Finished wire outer diameter |
| Φ20 | Φ20 mm | 25:1 | 150 m/min | 10 kg/hr | Φ0.20-1.0 mm |
| Φ25 | Φ25 mm | 25:1 | 150 m/min | 15 kg/hr | Φ0.3-1.5 mm |
| Φ30 | Φ30 mm | 25:1 | 180 m/min | 20 kg/hr | Φ0.5-2.5 mm |
| Φ40 | Φ40 mm | 25:1 | 180 m/min | 30 kg/hr | Φ0.5-2.5 mm |
| Φ50 | Φ50 mm | 25:1 | 200 m/min | 50 kg/hr | Φ0.5-6 mm |
| Φ60 | Φ60 mm | 25:1 | 200 m/min | 70 kg/hr | Φ0.5-8 mm |
