| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

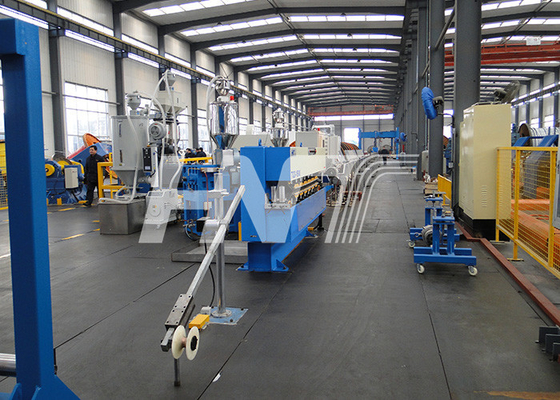

Silicohydride Crosslink Insulation Extrusion Line
Description
The one-step Silicohydride Crosslink Insulation Extrusion Line is designed for the insulation extrusion of cooper and aluminum conductors. It is suitable in the insulation extrusion for power cables range from 1kV to 10kV, also suitable for overhead conductors, plastic cables and etc. Applicable materials include PVC, PE and XLPE.
Technical parameter:
| Voltage Class |
1KV-10KV Crosslinking cable 1KV-10KV Crosslinking overhead cable |
| Conductor material |
Aluminum, copper Up to IEC 228 Standard |
| Conductor Shape | Roundness, sector strand conductor |
| Cross section area of conductor | 10-630mm², copper and Aluminum |
| Conductor Diameter | 4.0-40.0mm |
| Cable diameter | 9.5-42.0mm |
| Weight of cable | Max. 7kg/m |
| Wall Thickness |
Inner shied: 0.4-0.8mm Insulation: 0.8-3.5mm Color Skin: 0.1-0.5mm |
| Line Speed | Max. 80m/min |
| Model | Φ65 + Φ120+Φ120 |
| Screw diameter | Φ65 mm + Φ120 mm |
| Extrusion amount | 400 kg/hr |
| Viable conductor shape | Circular, Sector, Stranded, Solid |
| Applicable material | PVC, PE, XLPE |
| Control mode | PLC |
| Max line speed | 80 m/min |
| Wire diameter control precision | ±0.02 mm |
