| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

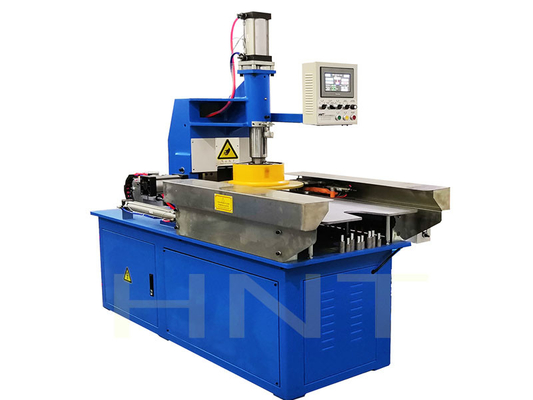

Cable Coiling Machine
Machine Main Feature:
1. Connect with the extrusion line or separate application for the non-stop cable coiling;
2. Machine with Auto holding arm adjust system after finished coiling;
3. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator;
4. Operation control Method:Touch screen+PLC；
5. Microcomputer memory can store 99 different specifications of wire coil. When you need to change the product;
specifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately;
6. Over-gauge unit: The measuring unit is 0.01M, The measuring unit is 0.01M, forecast automatic deceleration, and the will automatic coiling with set meter;
7. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling;
8. Instrument and switch on the operation panel: touch screen, speed adjustment button;
9. The machine PLC has the power frequency sparker contact(the power frequency spark machine is provided by the customer);
10. Used for wire spark detection, automatic spark breakdown point or after manual marking can be continued coiling function;
11. If the diameter is not up to the requirement, the waste wire can be automatically eliminated or the coiling function can be continued after manual marking.
Technical parameter:
| Model | Coil Height (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Wire Diameter (mm) | Rotating Speed (RPM) |
| C0836 | 40 - 80 | 180 - 360 | 120 - 200 | 0.8 - 6 | 1000 |
| C1246 | 50 - 100 | 200 - 460 | 140 - 220 | 0.8 - 6 | 800 |
| C1860 | 60 - 180 | 20 - 600 | 180 - 250 | 5 - 15 | 200 |
| C2060 | 60 - 200 | 220 - 600 | 180 - 250 | 5 - 15 | 150 |
| C2480 | 80 - 240 | 300 - 800 | 250 - 320 | 10 - 25 | 100 |
