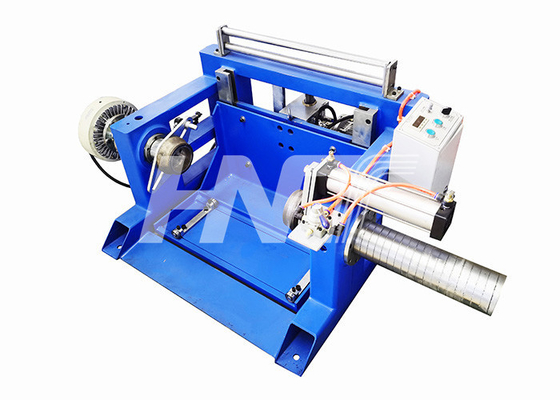

Passive Payoff Machine Magnetic Brake Cable Rewinding Line

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Loading Weight:

4000kg

Payoff Method:

Passive

Brake Method:

Magnetic

Pintle Clamp:

Pneumatic

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Warranty:

1 Year

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

Passive Payoff Machine

wire cable payoff machine

Magnetic brake cable rewinding line

Product Description

Passive Payoff

Description:

1. The pay-off can work with drawing machine, annealing machine, extrusion line, coiling and packing machine, rewinding machine, ect...

2. Structure: The pintle table is fixed, can not be moved from left and right;

3. Wire shaft lifting mode: electric lifting;

4. Pintle Clamp type: Cylinder;

5. Brake: Magnetic brake;

- Double reel Pay-off Specification:

Model	Inner diameter (mm)	Outer diameter (mm)	Max load (kg)
PF-1000M	630 - 1000	300 - 750	1500
PF-1250M	800 - 1250	450 - 950	2500
PF-1600M	1000 - 1600	600 - 1200	4000

-Single Reel Pay-off Specification:

Model	Inner diameter (mm)	Outer diameter (mm)	Max load (kg)
PFS-630M	400 - 630	300 - 475	600
PFS-800M	630 - 800	475 - 600	1000
PFS-1000M	800 - 1000	600 - 750	1500
PFS-1250M	1000 - 1250	750 - 950	2500
