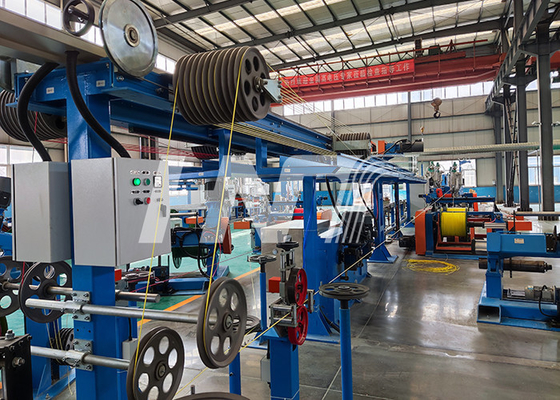

Electric Wire Extrusion Line
Electric Wire Extrusion Line
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Electric Wire Extrusion Line: Application for the wire and cable insulation; After Insulation can takeup to bobbin, as well as takeup to automatic coiling and packing machine will small cable coil; After insulation the packing line can connect with cable coil wrapping machine or cable coil film heat ...
Product Custom Attributes
Highlight
Electric Wire Extrusion Line
Application Material:
PVC, PE, XLPE, LSHF
Application:
Wire And Cable Insulation
Line Speed:
Max.1000m/min
Water Trough:
Single Layer Or Double Layer
Takeup Method:
Can Be Choosed
Crosshead Function:
Strip And Single Layer Extrusion
Product Description
Detailed Specifications & Features
Electric Wire Extrusion Line:
- Application for the wire and cable insulation;
- After Insulation can takeup to bobbin, as well as takeup to automatic coiling and packing machine will small cable coil;
- After insulation the packing line can connect with cable coil wrapping machine or cable coil film heat shrink packing line;
- Packing line can be choose with robot stacking or by manual;
- According to the takeup method, the max. line speed can be up to 1000m/min;
- Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
-
Insulation line can be equipment with a co-extruder for color skinning and stripping purposes
-
Can competed with THHN insulation lines by including a tandem extruder for PA(Nylon) outer Jacketing.
Technical parameter:
| Model | Screw parameter | Max Extrude capacity (kg/hr) | Finished Outer Diameter (mm) | ||||
| Diameter (mm) | L/D | Speed (RPM) | PVC | LDPE | LSNH | ||
| EX-40G | 40 | 26:1 | 120 | 24 | 14 | 0.8-3 | |
| EX-50G | 50 | 26:1 | 120 | 60 | 35 | 1-6 | |
| EX-60G | 60 | 26:1 | 120 | 100 | 60 | 22 | 2-8 |
| EX-70G | 70 | 26:1 | 120 | 160 | 130 | 36 | 3-15 |
| EX-80G | 80 | 26:1 | 110 | 220 | 180 | 48 | 5-20 |
| EX-90G | 90 | 26:1 | 100 | 310 | 240 | 65 | 8-25 |
| EX-100G | 100 | 25:1 | 90 | 400 | 90 | 10-30 | |
| EX-120G | 120 | 25:1 | 90 | 550 | 15-40 | ||
| EX-150G | 150 | 25:1 | 60 | 900 | 550 | ||
| EX-200G | 200 | 25:1 | 60 | 1300 | 1100 | 750 | |
