| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

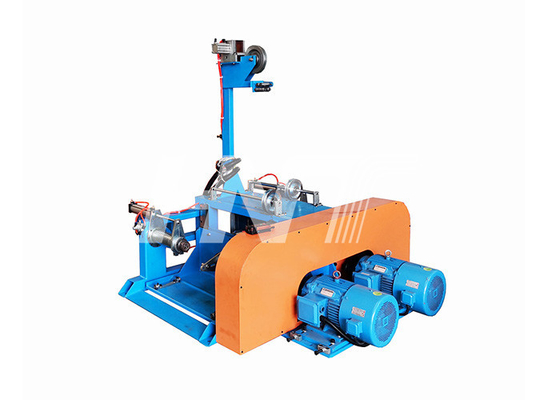

800 Dual Reel Payoff
Description:
1. Type: shaftless；
2. Suitable Bobbin: Ф500－Ф800mm;
3. Power: AC frequency conversion motor:
4. Lifting Method:AC gear motor + screw up and down；
5. Bobbin clamping method: Controlled by pneumatic;
6. Wire break detection: mechanical contact detection (wire break stop)
7. Main electrical configuration, frequency converter. Contactor, intermediate relay, transformer. The switch. The electric motor. Speed reducer, etc;
8. Control system with PLC + HMI for the speed detection so that the whole system work with the line speed in synchronization.
- Double reel Pay-off Specification:
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
| PF-1000M | 630 - 1000 | 300 - 750 | 1500 |
| PF-1250M | 800 - 1250 | 450 - 950 | 2500 |
| PF-1600M | 1000 - 1600 | 600 - 1200 | 4000 |
-Single Reel Pay-off Specification:
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
| PFS-630M | 400 - 630 | 300 - 475 | 600 |
| PFS-800M | 630 - 800 | 475 - 600 | 1000 |
| PFS-1000M | 800 - 1000 | 600 - 750 | 1500 |
| PFS-1250M | 1000 - 1250 | 750 - 950 | 2500 |
