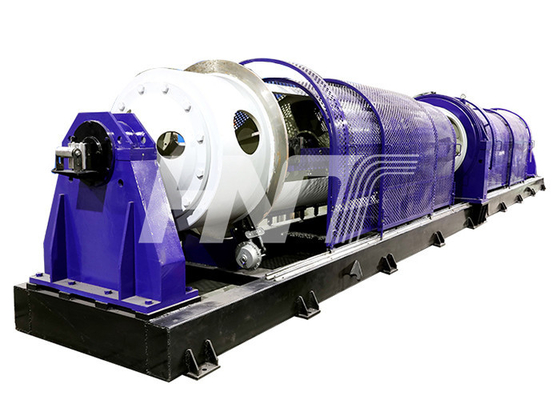

150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander
150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
JLG Tubular Stranding Series Description The JLG tubular stranding series is mainly designed for 7 core stranding. This series can be used to strand aluminum conductors, copper conductors, pressed copper conductors and etc. Technical parameters: Model JLG 500 JLG 630 Single wire diameter Cu: Ø 1.2-5...
Product Custom Attributes
Highlight
al wire Tubular Strander
,150m/min Copper wire Tubular Strander Machine
,Steel Wire Tubular Strander
Application Bobbin:
φ500mm & φ 630mm
Finished Dia.:
Max. 21mm
Suitable Material:
Copper And Al
Line Speed:
Max. 150m/min
Largest Take-up Bobbin:
PN1600
Machine Central Height:
850mm
Product Description
Detailed Specifications & Features
JLG Tubular Stranding Series
Description
The JLG tubular stranding series is mainly designed for 7 core stranding. This series can be used to strand aluminum conductors, copper conductors, pressed copper conductors and etc.
Technical parameters:
| Model | JLG 500 | JLG 630 |
| Single wire diameter | Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm |
Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm |
| Max finish wire diameter | Ø 21 mm | Ø 21 mm |
| Max rotation speed | 500 rpm | 500 rpm |
| Stranding pitch | 40-448 | 40-448 |
| Max line speed | 150 m/min | 150 m/min |
| Bobbin specification | PND500 | PND630 |
| Capstan wheel | 1250 mm | 1250 mm |
| Take-up bobbin | PN1600 | PN1600 |
| Height of center | 850 mm | 850 mm |
