| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

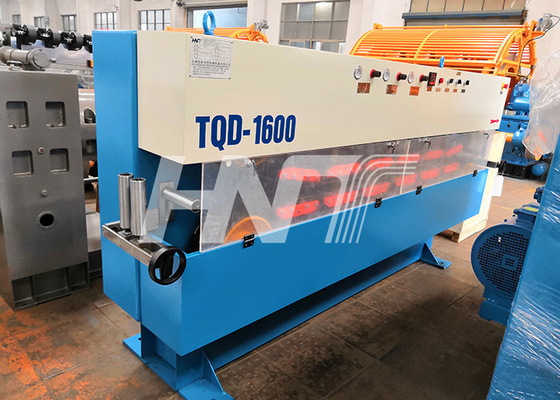

Caterpillar Capstan Belt Type
Description:
The TQD series are designed for pulling and transferring wires and cables in the wire & cable manufacturing production lines. This series of machines are normally attached to lines such as extrusion lines, armoring lines, rewinding lines and etc. The TQD series utilize pneumatic tension control system, which provides enough pulling force on the cable or wire while leaving no dents or other damage to the insulation or sheath.
Technical Parameter:
| Model | Max pulling force (kg) | Applicable cable diameter (mm) | Gripping length (mm) | Belt width (mm) | Max line speed (m/min) |
| TQD-1600 | 1600 | ≤φ100 | 1900 | 100 | 80 |
