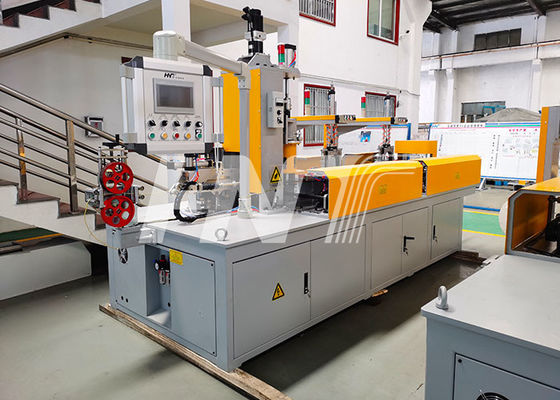

Cable Coiling Machine
Machine Main Feature:
1. Connect with the extrusion line or separate application for the non-stop cable coiling;
2. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator;
3. Operation control Method:Touch screen+PLC；
4. Can remenber 99 different specifications of wire coil;
specifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately;
5. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling;
6. Instrument and switch on the operation panel: touch screen, speed adjustment button;
7. The machine PLC has the power frequency sparker contact(the power frequency spark machine is provided by the customer);
8. If the diameter is not up to the requirement, the waste wire can be automatically eliminated or the coiling function can be continued after manual marking.
9. PP Stap, strap tension can be adjustable according to customer's requirements.
Technical parameter:
| Model | Coil Height (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Wire Diameter (mm) | Rotating Speed (RPM) |
| C1246 | 50 - 100 | 200 - 460 | 140 - 220 | 0.8 - 6 | 800 |
| C1860 | 60 - 180 | 20 - 600 | 180 - 250 | 5 - 15 | 200 |
| C2060 | 60 - 200 | 220 - 600 | 180 - 250 | 5 - 15 | 150 |
| C2480 | 80 - 240 | 300 - 800 | 250 - 320 | 10 - 25 | 100 |
