The equipment is a non-metal wrapping device, wrapping type is half-cut, the maximum speed is 500r/min, step less speed change, with forward and reverse functions, the tape tension is controlled by the mechanical controller and can be adjusted, with a tension feedback device to ensure The tension is basically constant, and there are pneumatic brakes and belt-break parking protection devices to ensure the safe operation of the equipment. This equipment is driven by a motor.
Taping device: Tangential type
No. Of Taping head: 2
Max. OD of taping wire: Φ200㎜
No. Of tape reel 2 reel
OD of tape reel Φ600㎜
Head Max. Speed 700r/min
Tape Overlap rate 0-50%.
Tape pitch: 9-160mm
Tape material Φ630*Φ80*(30—80) Water blocking tape, copper ribbon, copper tape, buffer tape, etc.(Metal belt weight 25kg/reel Max,Non-metallic belt weight 15kg/reel Max).
Adjusted by mechanical friction, adjustable tension.
Motor Power:11kw
The taping device is composed of a mechanical tension controller, a timing belt wheel and payoff reel. The tension is controlled by mechanical tension. According to the change of speed, the swing arm controls the mechanical tension, so that the tension of the reel changes synchronously with the change of the reel to ensure constant tension is released.

Non Metal Mica Tape Armouring Machine PET Cable Armouring Machine 0

Tags:

11KW Armoring Machine,

700r/min Armoring Machine,

11KW Cable Armouring Machine

Copper Wire Screening Machine

Contact Now

High Speed Copper Tape Armouring Machine for Power Cable

Contact Now

semi longitudinal Armoring Machine helical taping Armoring Machine

Contact Now

2 Pads Rectangular Strips Armoring Machine For Copper Tapes

Contact Now

Concentric tape armoring Machine For Control Cable

Contact Now

Concentric Steel Armored Cable Steel Taping Machine

Contact Now

Steel Wire concentric Taping And Arnouring Machine

Contact Now

Steel Cable Tape Wrapping Machine Two Head Armoring Machine

Contact Now

Non Metallic Armoring Machine Tangential Taping Machine

Contact Now

Non Metal Mica Tape Armouring Machine PET Cable Armouring Machine

Contact Now

Copper Tape Armoring Machine Tangential Tape Wrapper

Contact Now

PRODUCTS DETAILS

Products

Wire Stranding Machine

Rigid Stranding Machine

Tubular Stranding Machine

Double Twist Stranding Machine

Cable Extrusion Line

Cable Packing Machine

Shrink Packaging Machine

Wire Take Up Machine

Wire Payoff Machine

Armoring Machine

Caterpillar Capstan

Wire Accumulator

Rewinding Lines

Cable Materials

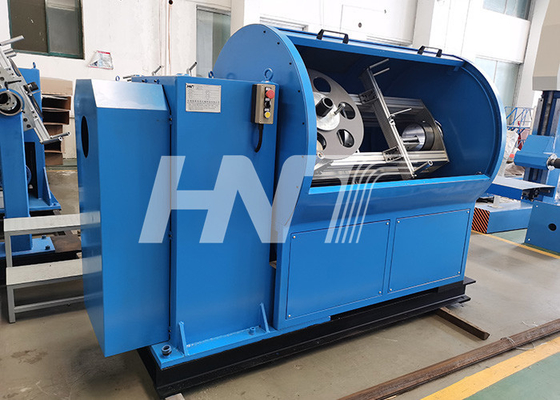

Non Metal Mica Tape Armouring Machine PET Cable Armouring Machine

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Taping Head:

Max. OD Of Taping Wire:

200mm

Head Max. Speed:

700r/min

Tape Pitch:

9-160mm

Motor:

11KW

OD Of Tape Reel:

φ600mm

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

mica tape Armouring Machine

PET Armoring Machine

PET Cable Armouring Machine

Product Description

Non Metal Taping Machine

The equipment is a non-metal wrapping device, wrapping type is half-cut, the maximum speed is 500r/min, step less speed change, with forward and reverse functions, the tape tension is controlled by the mechanical controller and can be adjusted, with a tension feedback device to ensure The tension is basically constant, and there are pneumatic brakes and belt-break parking protection devices to ensure the safe operation of the equipment. This equipment is driven by a motor.
Taping device: Tangential type
No. Of Taping head: 2
Max. OD of taping wire: Φ200㎜
No. Of tape reel 2 reel
OD of tape reel Φ600㎜
Head Max. Speed 700r/min
Tape Overlap rate 0-50%.
Tape pitch: 9-160mm
Tape material Φ630*Φ80*(30—80) Water blocking tape, copper ribbon, copper tape, buffer tape, etc.(Metal belt weight 25kg/reel Max,Non-metallic belt weight 15kg/reel Max).
Adjusted by mechanical friction, adjustable tension.
Motor Power:11kw
The taping device is composed of a mechanical tension controller, a timing belt wheel and payoff reel. The tension is controlled by mechanical tension. According to the change of speed, the swing arm controls the mechanical tension, so that the tension of the reel changes synchronously with the change of the reel to ensure constant tension is released.
