91B (1+24+30+36) Frame Rigid Stranding Machine with Armoring Function

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Application Wire Dia.:
Max. 5.0mm
Lay Length:
Φ30-55mm
Warranty:
12 Months
Line Speed:
Max. 100m/min
Application Bobbin:
φ630mm, φ710mm
Application:
Copper Or Aluminum Conductors Stranding
Highlight:

30Bobbin Rigid Stranding Machine

,

36B pioneer stranding machine

,

36B Rigid Stranding Steel Wire Making Machine

Product Description

φ630/710 Rigid Stranding Machine:

  1. The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors.
  2. Rigid stranding lines are ideal machine for making conductors of large size for LV/MV/HV power cables and over head conductors (AAC/AAAC/ACSR).
  3. Prepared for Bobbin Dia. 630mm to 710mm with automatic side or floor loading system at 45°as well as special systems adapted to customer need.
  4. Confuguration from 19 to 127 wire.

Line Main Parts:

Payoff 1set
Wire Guider 1set
Stranding cage Each 1set
single wire pre-twisted Each 1set
Wire Closing and Press mold base Each 1set
Meter Counter 1set
Double wheel capstan 2000/2500 1set
Side/bottom Lumped loading system 3set
Take up 1set
Electric control system 1set


Main Technical Date:

Machine Model JLK-630 JLK-710
Single Copper Wire Dia. Φ1.7～Φ4.5mm Φ1.7～Φ4.5mm
Single Alumium Wire Dia. Φ1.8～Φ5.0mm Φ1.8～Φ5.0mm
Single Alumium Alloy Wire Dia. Φ1.7～Φ4.5mm Φ1.7～Φ4.5mm
Max. stranded wire dia. Φ30-55mm Φ30-55mm
Lay length 40～350mm(step-less adjust) 40～350mm(step-less adjust)
Max rotate speed 500rpm 500rpm
Max line speed 100m/min 100m/min
Max rewinding speed 150～200m/min 150～200m/min
Pay off in Cage 630 710
Centre Payoff PND630/1600 PND630/1600
Dual Wheel Capstan 2000mm, 2500mm 2000mm, 2500mm
Cage rotate motor Siemens AC Motor Siemens AC Motor
Stranding Cage Structure 6B, 12B, 18B, 24B, 30B, 36B 6B, 12B, 18B, 24B, 30B, 36B
Loading Method Side loading or Bottom loading Side loading or Bottom loading

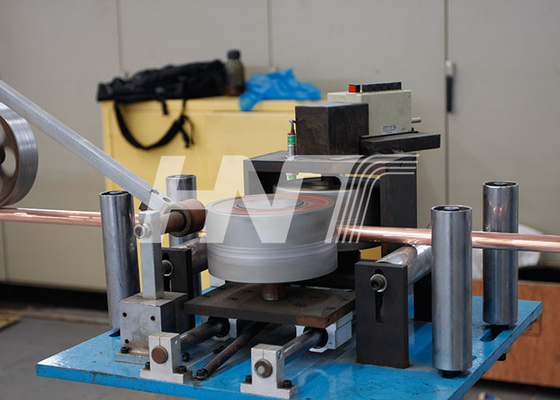

91B (1+24+30+36) Frame Rigid Stranding Machine with Armoring Function 091B (1+24+30+36) Frame Rigid Stranding Machine with Armoring Function 1

91B (1+24+30+36) Frame Rigid Stranding Machine with Armoring Function 2
