| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

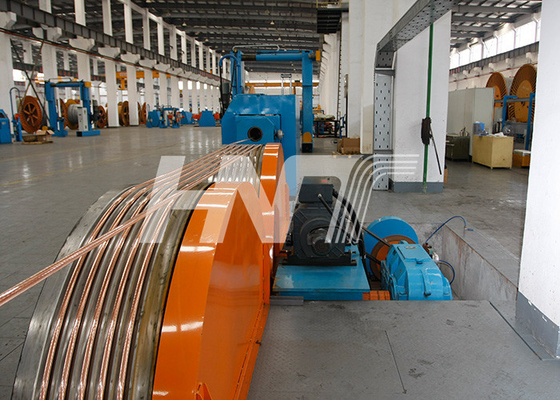

Rigid Strander
Main Technical Parameter:
1. Each cage is driven by separate motor, stranding pitch can be adjusted by Touch screen;
2. Application: This machine can run stranding and armouring process;
3. Application Type of wire: Copper, Aluminium, tinning copper and steel wire;
4. Loading/Unloading: Bottom or Side loading;
5. Wire Tension Control: Electrical control system by Electronic drive with valve.
6. This equipment is used for twisting and pressing of sector conductors, twisting and pressing of round conductors, etc.
Line Main Parts:
| Payoff | 1set |
| Wire Guider | 1set |
| Stranding cage | Each 1set |
| single wire pre-twisted | Each 1set |
| Wire Closing and Press mold base | Each 1set |
| Meter Counter | 1set |
| Double wheel capstan 2000/2500 | 1set |
| Side/bottom Lumped loading system | 3set |
| Take up | 1set |
| Electric control system | 1set |
Main Technical Date:
| Machine Model | JLK-630 | JLK-710 |
| Single Copper Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Single Alumium Wire Dia. | Φ1.8～Φ5.0mm | Φ1.8～Φ5.0mm |
| Single Alumium Alloy Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Max. stranded wire dia. | Φ30-55mm | Φ30-55mm |
| Lay length | 40～350mm(step-less adjust) | 40～350mm(step-less adjust) |
| Max rotate speed | 500rpm | 500rpm |
| Max line speed | 100m/min | 100m/min |
| Max rewinding speed | 150～200m/min | 150～200m/min |
| Pay off in Cage | 630 | 710 |
| Centre Payoff | PND630/1600 | PND630/1600 |
| Dual Wheel Capstan | 2000mm, 2500mm | 2000mm, 2500mm |
| Cage rotate motor | Siemens AC Motor | Siemens AC Motor |
| Stranding Cage Structure | 6B, 12B, 18B, 24B, 30B, 36B | 6B, 12B, 18B, 24B, 30B, 36B |
| Loading Method | Side loading or Bottom loading | Side loading or Bottom loading |
