tp460 Cable Coil Robot Stacking Machine Wire Stripping Machine

tp460 Cable Coil Robot Stacking Machine Wire Stripping Machine
Basic Properties
Place of Origin: Wuxi
Brand Name: HNT
Certification: ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Tags:

Cable Packing Machine

PVE wire coil wrapping machine

180mm Cable Packing Machine
Product Summary
Cable Coil Packing Machine: Machine Main Feature: Connect with the extrusion line for the non-stop cable coiling and wrapping operation. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator. Operation control ...
Product Custom Attributes
Highlight

tp460 cable coil packing machine

,

tp460 Cable Coil Robot Stacking Machine

,

tp460 coiling and packing machine

Packing Method:
Coiling And Wrapping
Line Speed:
Max. 300m/min
Coil ID:
Max. 250mm
Height Of Coil:
Max.210mm
Wrapping Material:
PVC, PVE
Loading Weight:
200kg
Product Description
Detailed Specifications & Features

Cable Coil Packing Machine:



Machine Main Feature:

  1. Connect with the extrusion line for the non-stop cable coiling and wrapping operation.
  2. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.
  3. Operation control Method:Touch screen+PLC；
  4. Machine design Line speed:Max300M/min;
  5. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling.
  6. Whole machine electrical circuit control: Mitsubishi microcomputer programmable controller (PLC).
  7. Instrument and switch on the operation panel: touch screen, speed adjustment button.
  8. Speed can be adjusted on the touch screen or the speed adjustment button.

Technical Parameter:

Model Coil Height (mm) Coil O.D (mm) Coil I.D (mm) Cable Dia. (mm)

Packing

Material

 Speed Robot Auto Stacking
TP460 60-100 240-460 170-220 4-12 PVC 2-2.6Coil/M Can be choosed
TP600 80-180 320-600 200-300 5-20 PVE 1.5-2 Coil/M Can be choosed

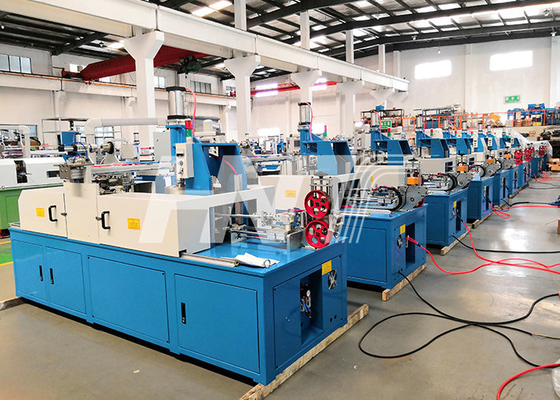

tp460 Cable Coil Robot Stacking Machine Wire Stripping Machine 0

tp460 Cable Coil Robot Stacking Machine Wire Stripping Machine 1

tp460 Cable Coil Robot Stacking Machine Wire Stripping Machine 2
