| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

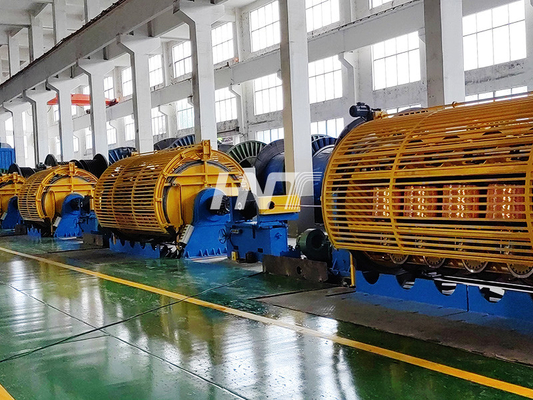

Rigid frame stranding machine 630/1+6+12+18
The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors. Rigid stranding lines are ideal machine for making conductors of large size for LV/MV/HV power cables and over head conductors (AAC/AAAC/ACSR). Prepared for Bobbin Dia. 630mm to 710mm with automatic side or floor loading system at 45°as well as special systems adapted to customer need. Confuguration from 19 to 127 wire.
Electrical Control System:
The synchronal control system for separate motorized strander is different with other similar strander system by other makers. It's easy to operator by setting-up of all parameters on touch screen. All process parameters can be recollected. Unique pro and date collection system ensure machine running stable and realiable. The precision of lay length is less than 3% when emergency stop and less than 1% when normal stop of line (Profibus communication control).
Technical Parameter:
| Machine Model | JLK-630 | JLK-710 |
| Single Copper Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Single Alumium Wire Dia. | Φ1.8～Φ5.0mm | Φ1.8～Φ5.0mm |
| Single Alumium Alloy Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Max. stranded wire dia. | Φ30-55mm | Φ30-55mm |
| Lay length | 40～350mm(step-less adjust) | 40～350mm(step-less adjust) |
| Max rotate speed | 500rpm | 500rpm |
| Max line speed | 100m/min | 100m/min |
| Max rewinding speed | 150～200m/min | 150～200m/min |
| Pay off in Cage | 630 | 710 |
| Centre Payoff | PND630/1600 | PPND630/1600 |
| Dual Wheel Capstan | 2000mm, 2500mm | 2000mm, 2500mm |
| Cage rotate motor | Siemens AC Motor | Siemens AC Motor |
| Stranding Cage Structure | 6B, 12B, 18B, 24B, 30B, 36B | 6B, 12B, 18B, 24B, 30B, 36B |
| Loading Method | Side loading or Bottom loading | Side loading or Bottom loading |
