PO42 Wire Payoff Machine For CCV Production Line

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Payoff Tension:
Pneumatic Control
Application Bobbin:
Φ2000～Φ4200mm
Application Wire Dia.:
Max.160mm
Max. Loading:
30200T
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Highlight:

Wire Payoff for CCV production line

,

PO42 Wire Payoff

,

PO42 Wire Payoff Machine

Product Description

PO42 Motorized payoff:

  1. It is mainly used for the pay-off of plastic extrusion line, high-frequency welding machines and other cable equipment.
  2. Wire reel diameter range: (㎜) Φ2000～Φ4200
  3. Max. flange Dia.:4200mm
  4. Applicable cable diameter: (㎜) Φ30～160
  5. Traverse range:30-160mm
  6. Applicable cable torque: (NM) 500～4000
  7. Electric control mode: PLC+Danfoss inverter
  8. Payoff Tension: Pneumatic control
  9. Installed capacity: (kw) 25
  10. Maximum load: 30t

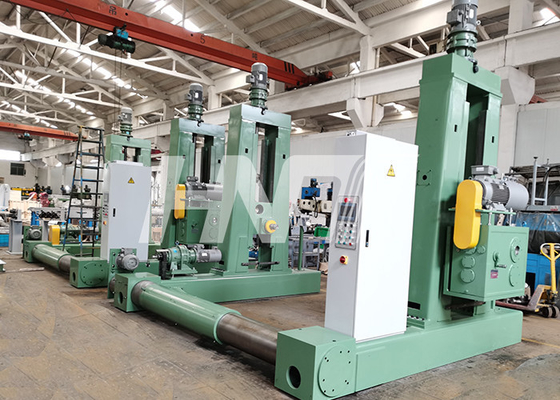

PO42 Wire Payoff Machine For CCV Production Line 0

Tags:

Cantilever Wire Payoff Machine,

40m/Min Wire Payoff Machine,

3000kg Wire Payoff Machine
