Low Smoke Zero Halogen Cable / Wire Extrusion Line

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Model Number
φ70mm Extrusion Line
Application Material:
PVC, PE, XLPE, LSHF
Application Wire Section:
1.5-240mm²
Line Speed:
Max. 1000m/min
Water Trough:
Single Layer Or Double Layer
Function:
Single Layer/double Later, Skinning, Stripping
Application:
PA(Nylon) Outer Jacketing
Highlight:

2mm Wire Extrusion Line

,

LSHF Wire Extrusion Line

,

cable extrusion machine factory

Product Description

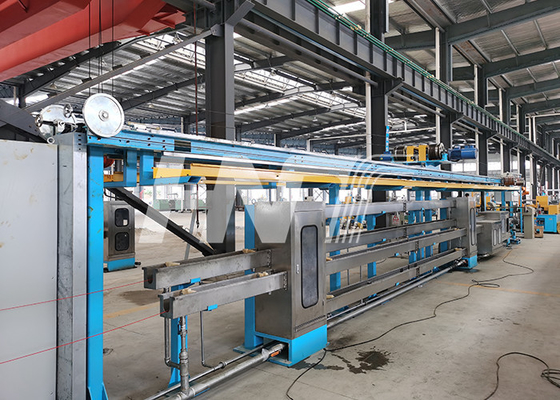

Building Wire Insulation Cooling Water Trough:

  1. Material: thickness 2mm, material 304 stainless steel;
  2. Cooling form: water immersion;
  3. Composition: double-layer structure;
  4. Extruder Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
  5. Insulation line can be equipment with a co-extruder for color skinning and stripping purposes
  6. Can competed with THHN insulation lines by including a tandem extruder for PA(Nylon) outer Jacketing.
  7. Crosshead clampers of EX series are double-tooth rod chain driven, and other fixed parts has the function of auto-centering.
  8. Electric circuit control is from Siemens programmable controller(PLC).
  9. Extrusion Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).

Extrusion Type:

Low Smoke Zero Halogen Cable / Wire Extrusion Line 0

Technical parameter:

Model Screw parameter Max Extrude capacity (kg/hr) Finished Outer Diameter (mm)
Diameter (mm) L/D Speed (RPM) PVC LDPE LSNH
EX-40G 40 26:1 120 24 14   0.8-3
EX-50G 50 26:1 120 60 35   1-6
EX-60G 60 26:1 120 100 60 22 2-8
EX-70G 70 26:1 120 160 130 36 3-15
EX-80G 80 26:1 110 220 180 48 5-20
EX-90G 90 26:1 100 310 240 65 8-25
EX-100G 100 25:1 90 400   90 10-30
EX-120G 120 25:1 90 550     15-40
EX-150G 150 25:1 60 900 550
EX-200G 200 25:1 60 1300 1100 750



Low Smoke Zero Halogen Cable / Wire Extrusion Line 1Low Smoke Zero Halogen Cable / Wire Extrusion Line 2

Low Smoke Zero Halogen Cable / Wire Extrusion Line 3
