Building Wire Extrusion Line With Robot Stacking Packing Machine

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Application:
Wire Insulation
Extruder Model:
φ70mm Extrusion
Line Speed:
300m/min
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Plastic Processed:
PVC,PE,PP,HDPE
Warranty:
1 Year
Highlight:

electric wire Cable Extrusion Line

,

Building Wire Cable Extruder Machine

,

PVC PP Extrusion Machine

Product Description

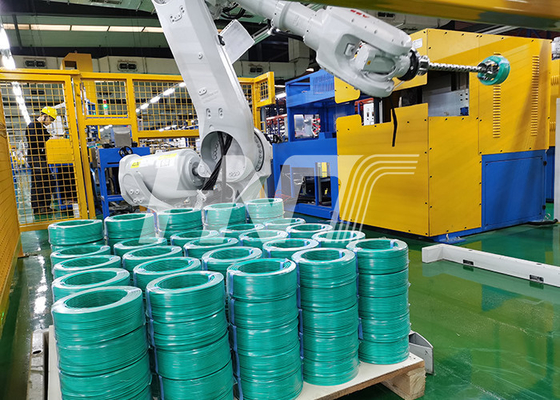

Extrusion Line With Robot Stacking Packing Machine:

  1. Connect with the Extrusion Line;
  2. After the coiling machine, can stack the cable coil and save labor cost;
  3. Application for the building wire & electric wire inusulation;
  4. Line speed Max. 300m/min connect with cable coil packing machine;
  5. Extrusion screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
  6. The extrusion crosshead of EX series can be selected from center-adjusted or adjustless, strip color and skin color can be adopt.
  7. Extrusion Temperature control by Japan RKC;

Technical parameter:

Model Screw parameter Max Extrude capacity (kg/hr) Finished Outer Diameter (mm)
Diameter (mm) L/D Speed (RPM) PVC LDPE LSNH
EX-40G 40 26:1 120 24 14   0.8-3
EX-50G 50 26:1 120 60 35   1-6
EX-60G 60 26:1 120 100 60 22 2-8
EX-70G 70 26:1 120 160 130 36 3-15
EX-80G 80 26:1 110 220 180 48 5-20
EX-90G 90 26:1 100 310 240 65 8-25
EX-100G 100 25:1 90 400   90 10-30
EX-120G 120 25:1 90 550     15-40
EX-150G 150 25:1 60 900 550
EX-200G 200 25:1 60 1300 1100 750





Building Wire Extrusion Line With Robot Stacking Packing Machine 0
