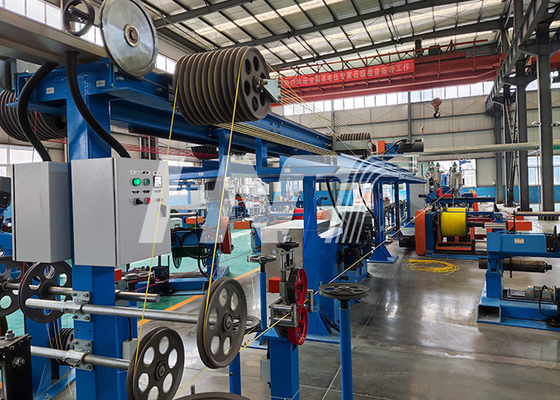

Horizontal Electrical Wire Accumulator For MV Extrusion Line
Horizontal Electrical Wire Accumulator For MV Extrusion Line
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Horizontal Accumulator: Application: for the extrusion non-stop production or rewinding line; Length: horizontal 12 meters; Stretching force: 2.2KW variable frequency AC motor; Applicable wire diameter: φ0.9-φ15mm; Tension form: 20KG magnetic powder clutch; Range of tension: ≤1400N; Wire Storage ...
Product Custom Attributes
Highlight
MV extrusion line Accumulator
,Horizontal Wire Accumulator
,Electrical Wire Accumulator
Wheel Diameter:
300/400mm
Conductor Diameter:
Max. 1000mm
Accumulator Length:
120m
Line Speed:
Max. 1000 M/min
Machine Length:
12M
Moving Wheels:
4
Product Description
Detailed Specifications & Features
Horizontal Accumulator:
- Application: for the extrusion non-stop production or rewinding line;
- Length: horizontal 12 meters;
- Stretching force: 2.2KW variable frequency AC motor;
- Applicable wire diameter: φ0.9-φ15mm;
- Tension form: 20KG magnetic powder clutch;
- Range of tension: ≤1400N;
- Wire Storage length: 200m;
- Guide wheel: diameter 300/400mm, material is alloy aluminum, surface anodized hardening, the number of wheels is 10+11 wheels;
- Anti-collision: compression spring;
- Safety device: limit contact detection, disconnection and shutdown;
- Tension output form: detected from the encoder, the tension changes linearly according to the change of the position of the storage line.
