Belt Type Caterpillar Pull Off Caterpillar
  • name

Belt Type Caterpillar Pull Off Caterpillar

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Pulling Force:
Max. 3200KG
Applicable Cable Diameter:
φ60mm
Cylinder Pairs:
9
Max Line Speed:
80m/min
Elt Width:
160mm
Clamping Length:
2800mm
Highlight:

Belt Type Caterpillar

,

cable Caterpillar

,

pull off Caterpillar

Product Description

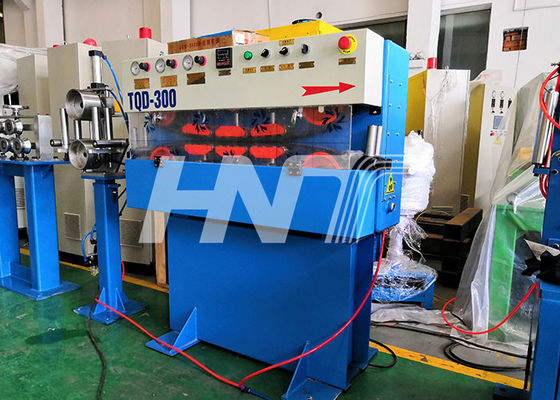

Caterpillar Capstan Belt Type

  1. The TQD series are designed for pulling and transferring wires and cables in the wire & cable manufacturing production lines.
  2. It is impacted by pneumatic and tension the belt automatically.
  3. The transmission is by the motor and gearbox.
  4. Synchronous controls the traction speed and the extruding speed, which level off and credibility.
  5. The controller is imported. There are level and vertical idler wheels on the edge of the output and input.
  6. The clearance can be adjusted according the wire diameter.
  7. Line speed: 200m/min
  8. Suitable wire diameter:≤30mm
  9. Max. traction:300kg.f
  10. Contact length of belt:300mm
  11. Quantity of cylinder:3 pairs

Cable guide roller

Suitable for adjustment friendly horizontally & vertically with rollers suitable up to all sizes of cores & cables.The guide roller stand shall be composed of two Nos: horizontal & vertical rollers( hard chromium plated rollers). Adjustment of each rollers set ( horizontal & vertical) shall be adjusted with one handle.

Technical Parameter:

Model Max pulling force (kg) Applicable cable diameter (mm) Gripping length (mm) Belt width (mm) Max line speed (m/min)
TQD-3200 3200 ≤φ150 2800 160 80
