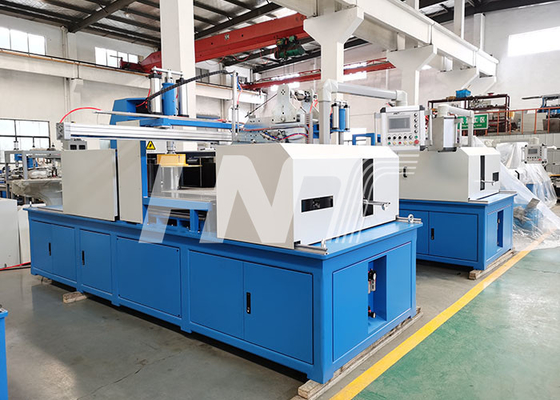

Automatic Wire Winding And Cable Packaging Machines With Cable Coil Robot Auto Stacking

Cable Coil Wrapping Machine :

Machine Main Feature:

1. Connect with the extrusion line for the non-stop cable coiling and wrapping operation.

2. Machine with Auto holding arm adjust system after finished coiling.

3. With Auto labeling machine, saving labor cost,safe and convenience.

4. Can connect with robot stacking system.

5. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.

6. Operation control Method:Touch screen+PLC；

7. Machine design Line speed:Max300M/min;

8. Microcomputer memory can store 99 different specifications of wire coil. When you need to change the product

specifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately.

9. Over-gauge unit: The measuring unit is 0.01M, The measuring unit is 0.01M, forecast automatic deceleration, and the will automatic coiling with set meter.

10. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling.

11. Whole machine electrical circuit control: Mitsubishi microcomputer programmable controller (PLC).

12. Instrument and switch on the operation panel: touch screen, speed adjustment button.

13. Speed can be adjusted on the touch screen or the speed adjustment button.

14. The machine PLC has the power frequency sparker contact(the power frequency spark machine is provided by the customer)

15. Used for wire spark detection, automatic spark breakdown point or after manual marking can be continued coiling function.

16. If the diameter is not up to the requirement, the waste wire can be automatically eliminated or the coiling function can be continued after manual marking.

Technical Parameter:
