Power: 200kW AC variable frequency motor;
Reduction gear box: the gear adopts grinding gear, and the special gear box for the extruder;
screw barrel: 38CrMoAlA;
amount of glue output :850kg/h (open machine head, soft PVC);
Electric heating: heating the casting aluminum heater with voltage of 220V, 6 sections of the screw barrel, and heating power is 7kW per section; Machine clamping 1 section, aluminum casting heating sheet, heating power 2*1500W;

Technical Parameter:

Type	Screw Dia.	Screw L/D	Screw Speed	Extrude Capacity of PVC	Finished Out Dia.(mm)
EX-150	150MM	25:1	70 RPM	Max. 850 KG/Hr	15-60

φ150mm Al/XLPE HDPE Cable Extrusion Line Cable Extruder Machine 0

Tags:

400m/Min Cable Extrusion Line,

1000m/Min Cable Extrusion Line,

70mm PP Extrusion Machine

Electric Wire Extrusion Line

Contact Now

Wire Insulation Line

Contact Now

Video

Rigid Conductor PVC Insulation Wire Extrusion Machine

Contact Now

Video

Silicohydride Crosslinking Insulation Extrusion Line

Contact Now

ABC Aluminum Aerial Bundled Overhead Cable Insulation Extrusion Line

Contact Now

Stranded Wire Power Cable Sheathing Machine

Contact Now

φ90mm cable extruder Machine

Contact Now

φ70mm cable extruder Machine

Contact Now

Double PVC Jacket Electrical Cable Wire Extruder BVV Stranded Copper cable extruder Machine

Contact Now

PV Cable Extrusion Machine

Contact Now

Video

Low Voltage XLPE Insulation Line

Contact Now

PRODUCTS DETAILS

Products

Wire Stranding Machine

Rigid Stranding Machine

Tubular Stranding Machine

Double Twist Stranding Machine

Cable Extrusion Line

Cable Packing Machine

Shrink Packaging Machine

Wire Take Up Machine

Wire Payoff Machine

Armoring Machine

Caterpillar Capstan

Wire Accumulator

Rewinding Lines

Cable Materials

φ150mm Al/XLPE HDPE Cable Extrusion Line Cable Extruder Machine

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Extrusion Material:

PVC, PE, XHFFR, XLPO,PE, XLPE.

Extrusion Capacity:

Max. 850kg/h

Screw Barrel Material:

38CrMoAlA

Screw Design:

Single-screw

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

150mm Cable Extrusion Line

power Cable Extrusion Line

Photovoltaic cable extrusion line

Product Description

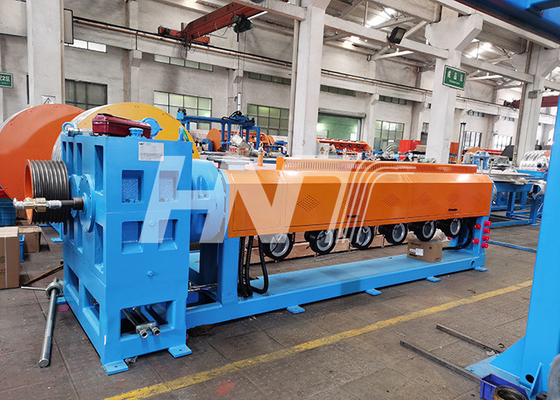

φ150mm cable extruder Machine:

Power: 200kW AC variable frequency motor;
Reduction gear box: the gear adopts grinding gear, and the special gear box for the extruder;
screw barrel: 38CrMoAlA;
amount of glue output :850kg/h (open machine head, soft PVC);
Electric heating: heating the casting aluminum heater with voltage of 220V, 6 sections of the screw barrel, and heating power is 7kW per section; Machine clamping 1 section, aluminum casting heating sheet, heating power 2*1500W;

Technical Parameter:

Type	Screw Dia.	Screw L/D	Screw Speed	Extrude Capacity of PVC	Finished Out Dia.(mm)
EX-150	150MM	25:1	70 RPM	Max. 850 KG/Hr	15-60
