High Speed Concentric Stranders For Copper And Aluminium Cable Bare
High Speed Concentric Stranders For Copper And Aluminium Cable Bare
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
High Speed Concentric Stranders For Copper And Aluminium Cable Bare Stranding Up To 61 Wires (copper, aluminium, aluminum alloy) Perfectly adapted for 37, 61 wires bare copper and aluminum compacted strand production at high speed Steel wire armouring and copper wire screening Features & Advantages: ...
Product Custom Attributes
Highlight
Copper wire strander
,high speed concentric stranding line
,Aluminium Cable Bare Concentric Stranders
Application Wire:
Copper, Alumium, Alumium Alloy
Application:
Conductor
Line Speed:
100m/min
Bobbin Size Of Cage:
1100×500×200mm
Cage Rotate Motor:
AC
Plc:
Siemens
Product Description
Detailed Specifications & Features

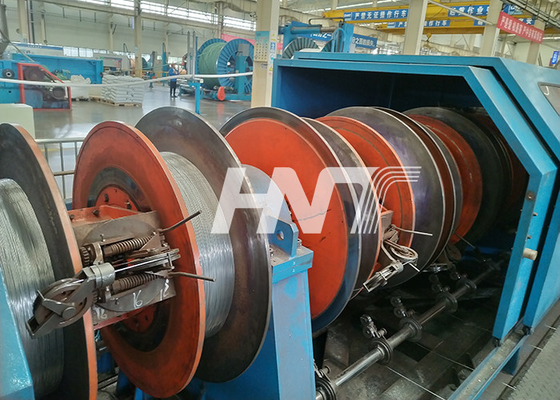

High Speed Concentric Stranders For Copper And Aluminium Cable Bare
- Stranding Up To 61 Wires (copper, aluminium, aluminum alloy)
- Perfectly adapted for 37, 61 wires bare copper and aluminum compacted strand production at high speed
- Steel wire armouring and copper wire screening
Features & Advantages:
- Energy regenerative solution;
- Reduction of conductor (Cu / Al) consumption
- 2 to 3 times faster than a rigid strander
- True concentric stranding process
- “Bobbin-less” solution
- Reduced length thanks to multiwire
Main Technical Parameter:
| Dia. of single Copper wire | Φ1.7～Φ4.5mm |
| Dia. of single Alumium wire | Φ1.8～Φ5.0mm |
| Dia. of single Alumium Alloy | Φ1.7～Φ4.5mm |
| Max. stranded wire dia. | Φ45mm |
| Lay length | 40～350mm(step-less adjust) |
| Max rotate speed | 500rpm |
| Max line speed | 100m/min |
| Max rewinding speed | 150～200m/min |
| Bobbin size of cage | 1100×500×200mm |
| Rewinding Pay-off | Φ600×Φ1060×H1730mm |
| Cage rotate motor | AC |
| 12 cage | 55kW |
| 18 cage | 75kW |
| 24 cage | 90kW |
