Hengtai provides high-quality stranders made in China with the highest standards in design and manufacturing for the production of all types of High Voltage and Extra-high Voltage Power cables, from overhead to insulated, AC type (using high-quality Milliken conductor) or DC type (using large round compacted conductor or trapezoidal wires).
Stranding Up To 61 Wires (copper, aluminum, aluminum alloy)
Perfectly adapted for 37, 61 wires bare copper and aluminum compacted strand production at high speed
Steel wire armouring and copper wire screening

Features & Advantages:

Energy regenerative solution;
Reduction of conductor (Cu / Al) consumption
2 to 3 times faster than a rigid strander
True concentric stranding process
“Bobbin-less” solution
Reduced length thanks to multiwire

Main Technical Parameter:

Dia. of single Copper wire	Φ1.7～Φ4.5mm
Dia. of single Alumium wire	Φ1.8～Φ5.0mm
Dia. of single Alumium Alloy	Φ1.7～Φ4.5mm
Max. stranded wire dia.	Φ45mm
Lay length	40～350mm(step-less adjust)
Max rotate speed	500rpm
Max line speed	100m/min
Max rewinding speed	150～200m/min
Bobbin size of cage	1100×500×200mm
Rewinding Pay-off	Φ600×Φ1060×H1730mm
Cage rotate motor	AC
12 cage	55kW
18 cage	75kW
24 cage	90kW

Copper Concentric Wire Stranding Machine Aluminum Alloy High Speed 0

Tags:

Copper Wire Stranding Machine,

200m/Min Electric Wire Manufacturing Machine,

18t Wire Stranding Machine

Trapezoidal Concentric Wire Rope Cable Making Machine For Extra hv Power Cable

Contact Now

Concentric Stranding Machine For Extra High Voltage Power Cable

Contact Now

Copper Wire Concentric Stranding Machine For High Voltage Power Cable

Contact Now

Concentric Twisting Copper Wire Stranding Machine For Conductor Round Or Sector Shape

Contact Now

Concentric Stranders Processing Cable Wire Making For Fan Shaped Conductor

Contact Now

High Speed Concentric Stranding Machine Line For Compacting Round Or Sector Shaped Copper Or Aluminium Conductor

Contact Now

Copper Al Alloy wire strander For No Back Twist concentric strander

Contact Now

6B+12B Concentric Wire Stranding Line For No Back Twist Stranding And Pressing

Contact Now

High Speed Concentric Wire Stranding Machine For High Voltage Cables

Contact Now

18 Bobbin Concentric Wire Stranding Machine With Good Rigidity Frame Structure

Contact Now

Concentric Wire Stranding Machine Bunching And Stranding Lines To Make Cable

Contact Now

PRODUCTS DETAILS

Products

Wire Stranding Machine

Rigid Stranding Machine

Tubular Stranding Machine

Double Twist Stranding Machine

Cable Extrusion Line

Cable Packing Machine

Shrink Packaging Machine

Wire Take Up Machine

Wire Payoff Machine

Armoring Machine

Caterpillar Capstan

Wire Accumulator

Rewinding Lines

Cable Materials

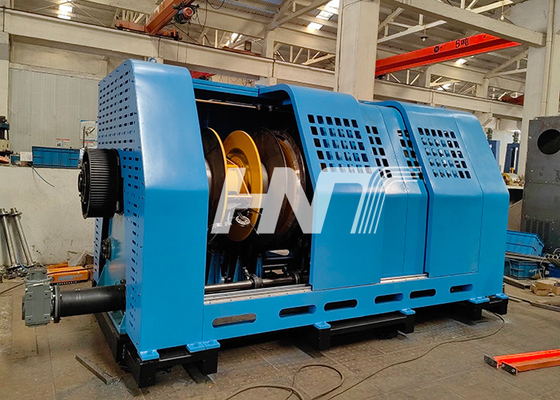

Copper Concentric Wire Stranding Machine Aluminum Alloy High Speed

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Application Wire:

Copper, Alumium, Alumium Alloy

Application:

Conductor

Line Speed:

100m/min

Bobbin Size Of Cage:

1100×500×200mm

Cage Rotate Motor:

Plc:

Siemens

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

Copper Concentric Wire Stranding Machine

Aluminum Alloy Wire Stranding Machine

high speed cable Stranding Machine

Product Description

Copper, Aluminum, Aluminum Alloy High Speed Concentric Stranding Machine

Hengtai provides high-quality stranders made in China with the highest standards in design and manufacturing for the production of all types of High Voltage and Extra-high Voltage Power cables, from overhead to insulated, AC type (using high-quality Milliken conductor) or DC type (using large round compacted conductor or trapezoidal wires).
Stranding Up To 61 Wires (copper, aluminum, aluminum alloy)
Perfectly adapted for 37, 61 wires bare copper and aluminum compacted strand production at high speed
Steel wire armouring and copper wire screening

Features & Advantages:

Energy regenerative solution;
Reduction of conductor (Cu / Al) consumption
2 to 3 times faster than a rigid strander
True concentric stranding process
“Bobbin-less” solution
Reduced length thanks to multiwire

Main Technical Parameter:

Dia. of single Copper wire	Φ1.7～Φ4.5mm
Dia. of single Alumium wire	Φ1.8～Φ5.0mm
Dia. of single Alumium Alloy	Φ1.7～Φ4.5mm
Max. stranded wire dia.	Φ45mm
Lay length	40～350mm(step-less adjust)
Max rotate speed	500rpm
Max line speed	100m/min
Max rewinding speed	150～200m/min
Bobbin size of cage	1100×500×200mm
Rewinding Pay-off	Φ600×Φ1060×H1730mm
Cage rotate motor	AC
12 cage	55kW
18 cage	75kW
24 cage	90kW
