Full Automatic Cable Coiling And Packing Machine For Building Wire

Full Automatic Cable Coiling And Packing Machine For Building Wire
Basic Properties
Place of Origin: Wuxi
Brand Name: HNT
Certification: ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Tags:

automatic Shrink Packaging Machine

Touch PLC Shrink Packaging Machine

HNT shrink wrap equipment
Product Summary
Full Automatic Cable Coiling And Packing Machine For Building Wire Machine Main Feature: The automatic cable coiling and wrapping machine equip PLC & HMI control program for automatic operation. All parts are chosen from international brands. Parameters can be set on the control program in English. ...
Product Custom Attributes
Highlight

building wire shrink packing machine

,

pp film packaging machine

,

Full Automatic shrink machine for packing

Application:
Full Heat Shrinking Packing
Max. OD Of Coil:
φ600mm
Strapping Method:
1 Tape Strapping
Width Of Tape:
15mm
Max ID Of Coil:
φ250mm
Tickness Of Tape:
0.4-0.6mm
Product Description
Detailed Specifications & Features

Full Automatic Cable Coiling And Packing Machine For Building Wire



Machine Main Feature:

  1. The automatic cable coiling and wrapping machine equip PLC & HMI control program for automatic operation. All parts are chosen from international brands. Parameters can be set on the control program in English. And coiling OD can be adjustable. The cable cutting length can be adjusted as set. The automatic error detection function will alarm when trouble occurs.
  2. Application Function: Automatic coiling, strapping, full packing of heat shrinking.
  3. Can connect with the extrusion line for the non-stop cable automatic packing.
  4. The machine can be connected with a labeling machine, automatic labeling with the manual.
  5. Can also choose a robot stacking system for full automatic running of the packing.
  6. The system with automatic detection function, when a problem comes out, the machine can auto-detect the mistakes, and send a message to warn the operator.

Technical Parameter:

Model Coil Height (mm) Coil O.D (mm) Coil I.D (mm) Cable Dia. (mm)

Packing

Material

 Speed Robot Auto Stacking
C1246  50-100 240-460 120-200 1-10 PVC 2-2.6Coil/M Can be choosed
C1860 60-180 200-600 180-250 5-15 PVE 1.5-2 Coil/M Can be choosed

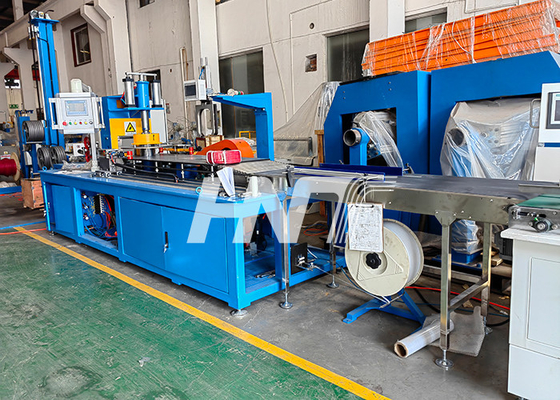

Full Automatic Cable Coiling And Packing Machine For Building Wire 0

Full Automatic Cable Coiling And Packing Machine For Building Wire 1
