Automotive Cable Extrusion Line
Automotive Cable Extrusion Line
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Automotive Cable Extrusion Line Designed for high speed insulation extrusion for automotive wires, applicable materials include PVC, PE, XLPE, PU and etc. Operation control Method: Touch screen+PLC； Line speed:Max 1000M/min; Power control: controlled by main switch and each brand switch； Motor ...
Product Custom Attributes
Highlight
Automotive Cable Extrusion Line
Operation Control Method:
Touch Screen+PLC；
Heating Temperature Control:
Japan RKC
Line Speed:
Max. 1000m/min
Wire Dia. Control:
Precision Control Within ±0.02
Payoff:
Cone/Flyer Payoff
Automatic Grade:
FULL-AUTO
Product Description
Detailed Specifications & Features

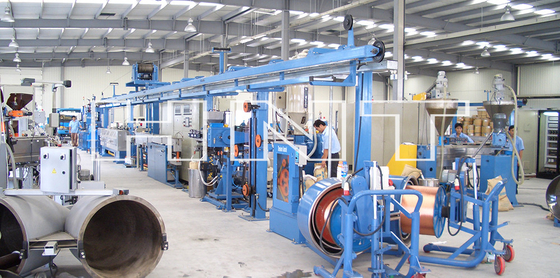

Automotive Cable Extrusion Line
- Designed for high speed insulation extrusion for automotive wires, applicable materials include PVC, PE, XLPE, PU and etc.
- Operation control Method: Touch screen+PLC；
- Line speed:Max 1000M/min;
- Power control: controlled by main switch and each brand switch；
- Motor operation control: frequency converter separate drive control each motor；
- Auxiliary accessories such as caliper and spark machine are completely integrated into the whole system, with higher automation, wire diameter setting, wire diameter control, automatic control;
- Electric heating temperature control (Japan RKC):within range of ±2℃, accuracy controls and measuring temperature points, to fit different technological requirements;
- Electric heating ampere meter: display heating of each zone, easily to check;
- Cooling fan control: control by RKC temperature-controlled meter, keep temperature curve to straightness;
- Each part action indicate light: indicate light to be markedness, to show real time working condition;
- Cabinet inside floodlight: open cabinet door, the light auto lighten, be easy to make operation, and be beneficial to be safe;
- Cabinet fan: close the cabinet door,the fan automatic work, to keep electric components inside the cabinet working safety;
- Counter, control loop: counter receive pulse signal from meter counter, proportion of code length and pulse count can freewill adjustment, easy for counting length, meanwhile with forecasting function to make operation easily;
- Diameter control: communication between calibrator and PLC, through touch screen setting diameter parameter, calibrator feedback signal, PLC make calculate, adopt ladder mode; precision control extruder, capstan to synchrospeed, make sure diameter control range within ±0.02
Technical Parameter:
| Model | Φ65 + Φ35 | Φ70 + Φ40 | Φ80 + Φ40 |
| Screw diameter | Φ65 mm | Φ70 mm | Φ80 mm |
| Extrusion amount | 170 kg/hr | 220 kg/hr | 300 kg/hr |
| Applicable material | PVC, PE, XLPE, PU and etc. | ||
| Control mode | Industrial computer+PLC | ||
| Max line speed | 700 m/min | 800 m/min | 1000 m/min |
| Wire diameter control precision | ±0.02 mm | ||
| Wire Takeup | to bobbin or to Auto coiling and packing machine | ||
