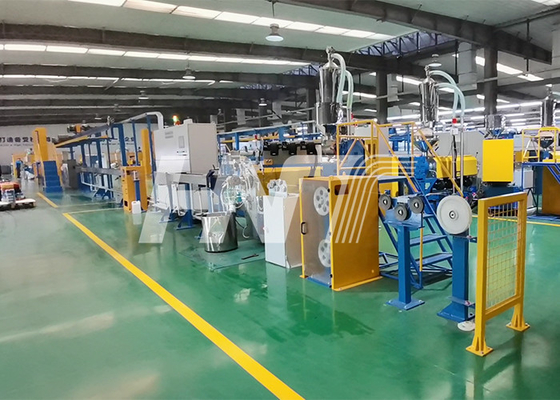

BV BVR BVVB RV RVV Building Wire Extrusion Line / Cable Coating Machine

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Model Number
φ70mm Extrusion Line
Highlight:

wire sheathing line

,

RVV Building Wire Extrusion Line

,

BVR Cable Coating Machine

Product Description

Building Wire Extrusion Line:

  1. The EX series are specifically designed for the manufacture of building wires.
  2. Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
  3. The extrusion crosshead of EX series can be selected from center-adjusted or adjustless, strip color and skin color can be adopt.
  4. Crosshead clampers of EX series are double-tooth rod chain driven, and other fixed parts has the function of auto-centering.
  5. Operation plate of main control box is mounted with human-computer interface and also traditional button switch to ensure operational simplicity.
  6. Electric circuit control is from Siemens programmable controller(PLC).
  7. Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).
  8. Hopper dryer& Auto-suction device is from TAIWAN Brand.

Extrusion Type:

BV BVR BVVB RV RVV Building Wire Extrusion Line / Cable Coating Machine 0

Technical parameter:

Model Screw parameter Max Extrude capacity (kg/hr) Finished Outer Diameter (mm)
Diameter (mm) L/D Speed (RPM) PVC LDPE LSNH
EX-40G 40 26:1 120 24 14   0.8-3
EX-50G 50 26:1 120 60 35   1-6
EX-60G 60 26:1 120 100 60 22 2-8
EX-70G 70 26:1 120 160 130 36 3-15
EX-80G 80 26:1 110 220 180 48 5-20
EX-90G 90 26:1 100 310 240 65 8-25
EX-100G 100 25:1 90 400   90 10-30
EX-120G 120 25:1 90 550     15-40
EX-150G 150 25:1 60 900 550
EX-200G 200 25:1 60 1300 1100 750



BV BVR BVVB RV RVV Building Wire Extrusion Line / Cable Coating Machine 1

BV BVR BVVB RV RVV Building Wire Extrusion Line / Cable Coating Machine 2
