| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

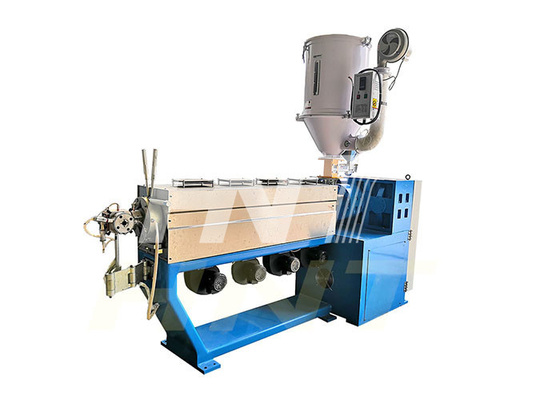

φ70mm cable extruder Machine:
Application:
PVC, Low Voltage Cable, Building Wire, Automotive, Fiber Optic.
Power: AC motor;
Reduction gear box: The gear adopts grinding gear ZLYJ200, and the gear box for extruder is special;
Screw: 38CrMoAIA,φ70mm, length-diameter ratio 25:1, equipped with low-smoke halogen-free screw;
Screw barrel: 38CrMoAIA;
Screw speed: 10-110min;
Extrusion volume: 180kg/h (open head, soft PVC);
Electric heating: using voltage 220V, 4 sections of screw barrel, heating by cast aluminum heater, heating power of each section is 4.5KW; 1 section of machine clip, heating by stainless steel heating rod, heating power of 9*110W;
Machine clamp form: two-piece machine clamp;
Cooling method: 4 high-pressure centrifugal fans for barrel cooling, fan power 370W; natural cooling with machine clips.
Technical Parameter:
| Type | Screw Dia. | Screw L/D | Screw Speed | Extrude Capacity of PVC | Finished Out Dia.(mm) |
| EX-70 | 70MM | 25:1 | 110 RPM | Max. 200 KG/Hr | 3-15 |
