| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

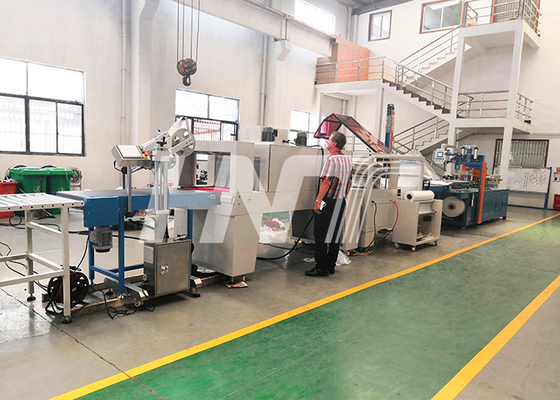

Cable coiling & Film Heat Shrink Packing Line:
1. utilizes anti-stick and high-temperature alloy "L" type sealing knife to make sure the sealing is neat and free of crack, coke and smoke;
2. Sealing knife is plated with Teflon non-stick layer, so the film will not stick on the knife;
3. After sealing and cutting, machine automatically transfers the coils to the heat shrinking machine by the conveyor belt for shrink packaging;
4. Conveyor belt tension and conveying time can be adjusted to ensure stable belt tension so that the coil can be smoothly fed into the shrink bag;
5. The heat shrinking machine adopts double-layer insulation device to prevent heat loss and reduce energy consumption;
6. There is a fan in the heat shrink machine, and the heat source can be evenly distributed to all parts of the furnace;
7. The temperature in the heat shrinking machine is about 150-200 ℃, which can be adjusted;
8. All parts are equipped with safety guards and emergency stop devices to protect the operator.
Technical Parameter:
| Model | 1246 | 1860 |
| Applicable wire Dia. | 1 - 10 mm | 10-15mm |
| Production speed | 300 m/min | |
| Outer diameter of coils | Φ100 - 300 mm | Φ200- 600 mm |
| Inner diameter of coils | Φ120 - 200 mm | Φ180 - 250 mm |
| Height of coils | 50 - 100 mm | 60 - 120 mm |
| Material of strips | PP | |
| Packing method | Full heat shrinking | Full heat shrinking |
| Auto stacking and palletizing system | Optional | Optional |
