| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

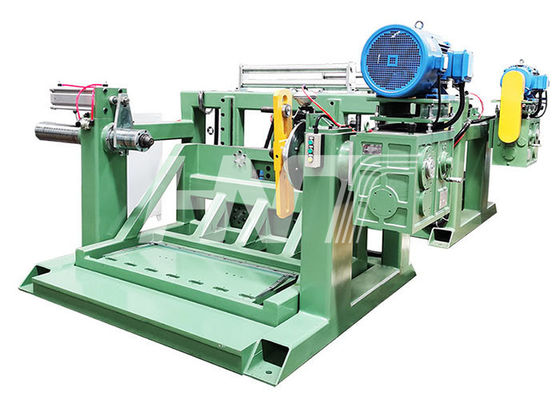

Cantilever Payoff
Description:
1. The pay-off can work with drawing machine, annealing machine, extrusion line, coiling and packing machine, rewinding machine, ect...
2. Structure: The pintle table is fixed, can not be moved from left and right;
3. Wire shaft lifting mode: electric lifting;
4. Pintle Clamp type: Cylinder;
5. Wire feeding power: AC motor + frequency converter + reducer;
6. Wire feeding speed control: automatically control the motor wire feeding speed;
7. Brake: pneumatic brake;
8. Main electrical configuration, frequency converter. Contactor, intermediate relay, transformer. The switch. The electric motor. Speed reducer, etc;
9. Control system with PLC + HMI for the speed detection so that the whole system work with the line speed in synchronization.
- Double reel Pay-off Specification:
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
| PF-1000M | 630 - 1000 | 300 - 750 | 1500 |
| PF-1250M | 800 - 1250 | 450 - 950 | 2500 |
| PF-1600M | 1000 - 1600 | 600 - 1200 | 4000 |
-Single Reel Pay-off Specification:
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
| PFS-630M | 400 - 630 | 300 - 475 | 600 |
| PFS-800M | 630 - 800 | 475 - 600 | 1000 |
| PFS-1000M | 800 - 1000 | 600 - 750 | 1500 |
| PFS-1250M | 1000 - 1250 | 750 - 950 | 2500 |
