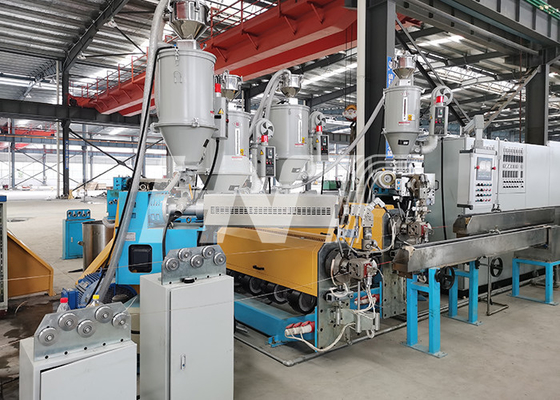

RVVP Shield Flexible Power Electrical Cable Coating Line
RVVP Shield Flexible Power Electrical Cable Coating Line
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Electric Wire Extrusion Line: φ70+50mm 2 in 1 Extrusion Line, save space and labor cost; After Insulation can takeup to bobbin, as well as takeup to automatic coiling and packing machine will small cable coil; After insulation the packing line can connect with cable coil wrapping machine or cable ...
Product Custom Attributes
Highlight
Teflon Cable Coating Line
,PE pvc cable extruder machine
,LSHF extruder machine for cable
Application Material:
PVC, PE, XLPE, LSHF
Extruder Mode:
70+50mm
Line Speed:
Max. 300m/min
Water Trough:
Single Layer Or Double Layer
Function:
Insualtion
Product Description
Detailed Specifications & Features
Electric Wire Extrusion Line:
- φ70+50mm 2 in 1 Extrusion Line, save space and labor cost;
- After Insulation can takeup to bobbin, as well as takeup to automatic coiling and packing machine will small cable coil;
- After insulation the packing line can connect with cable coil wrapping machine or cable coil film heat shrink packing line;
- Packing line can be choose with robot stacking or by manual;
- Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
-
Insulation line can be equipment with a co-extruder for color skinning and stripping purposes
-
Can competed with THHN insulation lines by including a tandem extruder for PA(Nylon) outer Jacketing.
- Electric circuit control is from Siemens programmable controller(PLC).
- Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).
Extrusion Type:
Technical parameter:
| Model | Screw parameter | Max Extrude capacity (kg/hr) | Finished Outer Diameter (mm) | ||||
| Diameter (mm) | L/D | Speed (RPM) | PVC | LDPE | LSNH | ||
| EX-40G | 40 | 26:1 | 120 | 24 | 14 | 0.8-3 | |
| EX-50G | 50 | 26:1 | 120 | 60 | 35 | 1-6 | |
| EX-60G | 60 | 26:1 | 120 | 100 | 60 | 22 | 2-8 |
| EX-70G | 70 | 26:1 | 120 | 160 | 130 | 36 | 3-15 |
| EX-80G | 80 | 26:1 | 110 | 220 | 180 | 48 | 5-20 |
| EX-90G | 90 | 26:1 | 100 | 310 | 240 | 65 | 8-25 |
| EX-100G | 100 | 25:1 | 90 | 400 | 90 | 10-30 | |
| EX-120G | 120 | 25:1 | 90 | 550 | 15-40 | ||
| EX-150G | 150 | 25:1 | 60 | 900 | 550 | ||
| EX-200G | 200 | 25:1 | 60 | 1300 | 1100 | 750 | |
