Cantilever Motorized Wire Payoff Machine Cable Payoff

Cantilever Motorized Wire Payoff Machine Cable Payoff
Basic Properties
Place of Origin: Wuxi
Brand Name: HNT
Certification: ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Tags:

Cantilever Wire Payoff Machine

40m/Min Wire Payoff Machine

Heavy Duty Wire Payoff Machine
Product Summary
Cantilever Payoff Description: 1. The pay-off can work with drawing machine, annealing machine, extrusion line, coiling and packing machine, rewinding machine, ect... 2. Machine can be designed to Double reel payoff and Single Reel Payoff; 3. Structure: The pintle table is fixed, can not be moved ...
Product Custom Attributes
Highlight

Cantilever Wire Payoff Machine

,

Motorized Wire Payoff Machine

,

Motorized Cable Payoff

Payoff Method:
Motorized
Structure:
Single Or Double Reel Payoff
Brake:
Pneumatic Brake;
Control Method:
PLC+HMI
Bobbin Lifting Method:
Electric Lifiting
Line Speed:
Max. 500m/min
Product Description
Detailed Specifications & Features

Cantilever Payoff



Description:

1. The pay-off can work with drawing machine, annealing machine, extrusion line, coiling and packing machine, rewinding machine, ect...

2. Machine can be designed to Double reel payoff and Single Reel Payoff;

3. Structure: The pintle table is fixed, can not be moved from left and right;

4. Wire shaft lifting mode: electric lifting;

5. Pintle Clamp type: Cylinder;

6. Wire feeding power: AC motor + frequency converter + reducer;

7. Wire feeding speed control: automatically control the motor wire feeding speed;

8. Brake: pneumatic brake;

9. Main electrical configuration, frequency converter. Contactor, intermediate relay, transformer. The switch. The electric motor. Speed reducer, etc;

10. Control system with PLC + HMI for the speed detection so that the whole system work with the line speed in synchronization.



- Double reel Pay-off Specification:

Model Inner diameter (mm) Outer diameter (mm) Max load (kg)
PF-1000M 630 - 1000 300 - 750 1500
PF-1250M 800 - 1250 450 - 950 2500
PF-1600M 1000 - 1600 600 - 1200 4000



-Single Reel Pay-off Specification:

Model Inner diameter (mm) Outer diameter (mm) Max load (kg)
PFS-630M 400 - 630 300 - 475 600
PFS-800M 630 - 800 475 - 600 1000
PFS-1000M 800 - 1000 600 - 750 1500
PFS-1250M 1000 - 1250 750 - 950 2500

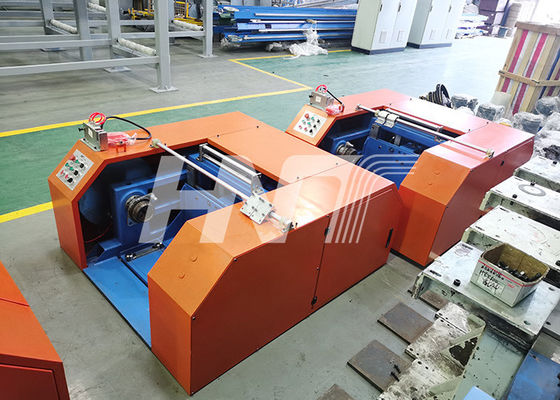

Cantilever Motorized Wire Payoff Machine Cable Payoff 0
