Automatic Payoff Machine For Extrusion Line Wire Payoff Equipment Column Payoff
Automatic Payoff Machine For Extrusion Line Wire Payoff Equipment Column Payoff
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
1600 Column payoff: Mainly used for the Payoff of plastic extrusion units, high-frequency welding machines and other cable equipment. Application Bobbin:PN800-PN1600 Width of Bobbin: 500-1000mm Bobbin Main shaft lifting range: 350-850mm Reel lifting range: 0.6M/Min Payoff speed: 4-100M/Min Max. ...
Product Custom Attributes
Highlight
payoff machine for extrusion line
,wire payoff equipment
,Column payoff
Loading Weight:
6T
Payoff Speed:
4-100M/Min
Reel Lifting Range:
0.6M/Min
Payoff Method:
Portal Walking Structure
Safety:
Mechanical Protection And Electrical Protection Devices
Pintle Clamp Method:
By Motor
Product Description
Detailed Specifications & Features

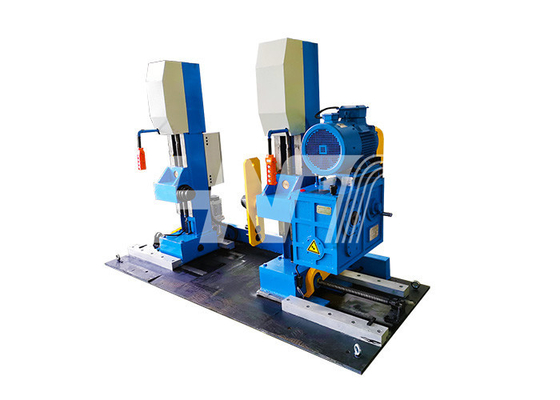

1600 Column payoff:
- Mainly used for the Payoff of plastic extrusion units, high-frequency welding machines and other cable equipment.
- Application Bobbin:PN800-PN1600
- Width of Bobbin: 500-1000mm
- Bobbin Main shaft lifting range: 350-850mm
- Reel lifting range: 0.6M/Min
- Payoff speed: 4-100M/Min
- Max. Loading: 6T
The loading and unloading method of the Payoff reel is a portal walking structure. The two pintles of the reel are driven up and down by two motors through a cycloidal pinwheel reducer. Each center can be raised and lowered individually or at the same time. It is equipped with mechanical protection and electrical protection devices. The pintle can meet the installation of different specifications of wire reels; the clamping of the wire reels is realized by the motor, and is equipped with mechanical protection and electrical protection devices. It is very convenient to load and unload the spool.
