| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |
Auto Packing Machine:
Line Main Techincal Information:
1. Machine designed for the coiling,binding and film shrink packing process of cable, it tightens the finished coils, making it easy for the next process for the coils;
2. Controlled by PLC and touch screen, easy to operate;
3. Adopt servo motor flat cable system, ensuring precise control on the appearance of finished product;
4. The PLC mode has already stored 99 wire packaging settings, if the user would like to choose a different packaging method, simply load a new setting, and the machine will be ready to operate;
5. Binding tension is adjustable according to product characteristics;
6. Automatic fault detecting system is built-in to warn operators and show faultinformal Automatic fault detecting system is built-in to warn operators and show fault information on touch screen once a problem occurs;
7. This line could also be followed with an optional automatic/intelligent stacking and palletizing system, which uses robotic arms to replace human labor, increasing efficiency and reducing labor cost. One system could be used to stack and palletize 3 production lines.
Auto Labeling Machine:
The automatic labeling machine is an automatic packaging machine that uses self-adhesive rolls of labeling paper, and continuously tears off the rolls of label paper, and pastes them to the reel according to the required position. The equipment control system uses computer programming, LCD touch screen, text and buttons, etc., with excellent and reliable working performance.

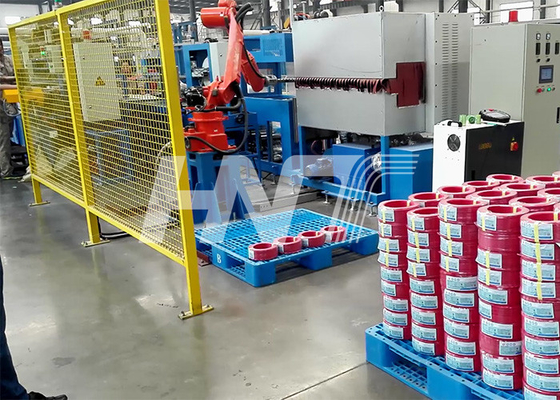

Robot Stacking system:
The industrial robot is a 6-axis industrial robot, using high-speed small inertia servo motor and high-precision control technology, compact structure, high joint speed, fast dynamic response, high precision, strong overload capacity, adopts a bus structure, and is easy to expand and apply. It is mainly used for the processes of fixed-point collection, handling, wrapping, heat-shrinking conveying and finished product palletizing of wire coils.
Technical Parameter:
| Model | 1246 | 1860 |
| Applicable wire Dia. | 1 - 10 mm | 10-15mm |
| Production speed | 300 m/min | |
| Outer diameter of coils | Φ100 - 300 mm | Φ200- 600 mm |
| Inner diameter of coils | Φ120 - 200 mm | Φ180 - 250 mm |
| Height of coils | 50 - 100 mm | 60 - 120 mm |
| Material of strips | PP | |
| Packing method | Hollow/full heat shrinking | Hollow/full heat shrinking |
| Auto stacking and palletizing system | Optional | Optional |
Video
Video
Video
Video
|
|
