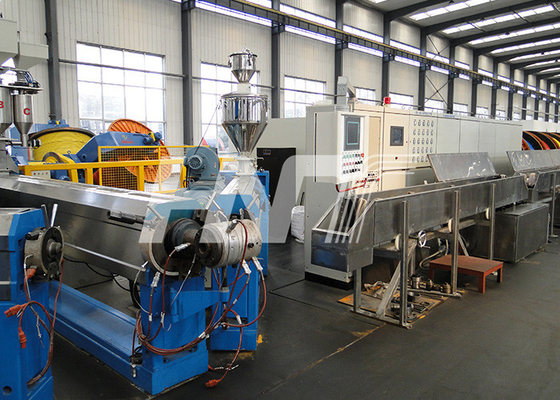

Low Voltage XLPE Insulation Line
Low Voltage XLPE Insulation Line
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Model Number:
φ70mm Extrusion Line
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Low Voltage XLPE Insulation Line: Description The one-step Silicohydride Crosslink Insulation Extrusion Line is designed for the insulation extrusion of cooper and aluminum conductors. It is suitable in the insulation extrusion for power cables range from 1kV to 10kV, also suitable for overhead ...
Product Custom Attributes
Highlight
Low Voltage XLPE Insulation Line
,XLPE Insulation Line
Application Material:
XLPE
Voltage Class:
1-10KV Crosslinking Cable
Conductor Material:
Copper, Aluminum
Certification:
CE,ISO9001
Screw Design:
Single-screw
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Motor:
SIEMENS Brand
Product Description
Detailed Specifications & Features
Low Voltage XLPE Insulation Line:
Description
The one-step Silicohydride Crosslink Insulation Extrusion Line is designed for the insulation extrusion of cooper and aluminum conductors. It is suitable in the insulation extrusion for power cables range from 1kV to 10kV, also suitable for overhead conductors, plastic cables and etc. Applicable materials include PVC, PE and XLPE.
Technical parameter:
| Voltage Class |
1KV-10KV Crosslinking cable 1KV-10KV Crosslinking overhead cable |
| Conductor material |
Aluminum, copper Up to IEC 228 Standard |
| Conductor Shape | Roundness, sector strand conductor |
| Cross section area of conductor | 10-630mm², copper and Aluminum |
| Conductor Diameter | 4.0-40.0mm |
| Cable diameter | 9.5-42.0mm |
| Weight of cable | Max. 7kg/m |
| Wall Thickness |
Inner shied: 0.4-0.8mm Insulation: 0.8-3.5mm Color Skin: 0.1-0.5mm |
| Line Speed | Max. 80m/min |
