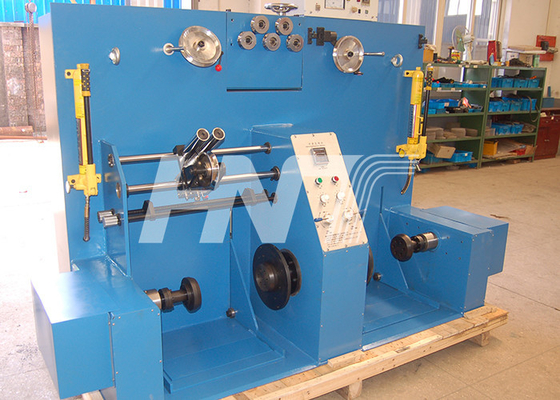

Steel Wire Rewinding Lines Cable Unwinding And Winding

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Bobbin Size:

630/1250mm

Wire Dia.:

1-10mm

Line Speed:

Max. 250m/min

Weight:

Max.1000kg

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Power(w):

15KW

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

Steel wire Rewinding Lines

250m/min Rewinding Lines

cable unwinding and winding

Product Description

Rewinding Machine (φ500/1250 mm)

Technical Parameter

Specification	PND 500/630	PND 630/1250
Bobbin size (mm)	500/630	630/1250
Max. Dia. of flange (mm)	500	630
Min. Dia. of flange (mm)	630	500
Center hole (mm)	φ75	φ75
Range of wire diameter (mm)	φ1.0-5.0	Φ3.0-10.0
Line speed (m/min)	250	150
Motor power (kW)	7.5	11
Max. reel weight (kg)	600	1000
