| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

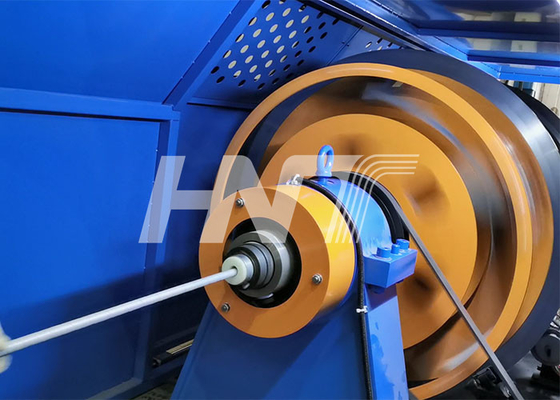

Steel Armouring Machine
Application:
The purpose of this production line is the application of a helical layer of copper or aluminium wires over a cable core. The final products is mainly a low voltage cable to connect low voltage consumer by the power utility, where the phase conductor is the central aluminium conductor and the neutral conductor is the wire layer. The final product can also be a medium voltage cable and the copper wires are the cable shied.
| Type | 600/2 | 800/2 |
| cable diameter range | 20mm to 60mm | 60mm to 160mm |
| Taping Overlap | 0-50% | 0-50% |
| Rotate Speed | 500r/min | 500r/min |
| Taping Pitch | 9-160mm | 9-160mm |
| Taping Tension | 2.5-15daN | 2.5-15daN |
| Motor | 7.5KW | 7.5KW |
| Material of Tape | Water Proof Tape, Copper Tape, Buffering Tape, Plastic Tape etc. | |
Constitute
| Payoff | 1 set |
| Section to section device | 1 set |
| Taping Machine | 2 set |
| Meter Counter | 1 set |
| Belt Caterpillar | 1 set |
| Take-up | 1 set |
| Electric Control Ststem | 1 set |
|
|
