Elevator Travelling Cable Extruder Machine TPU Extrusion

Elevator Travelling Cable Extruder Machine TPU Extrusion

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Certification:
CE,ISO9001,SGS
Screw Design:
Single-screw
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Plastic Processed:
TPU
Product Type:
Flat Cable
Motor:
SIEMENS Brand
Highlight:

Flat Cable HDPE Extruder Machine

,

flat cable making machine

,

Flat Cable TPU Extruder

Product Description

Flat Cable Extrusion Line



Main Technical Parameter:

Mainly used for double-layer co-extrusion of insulation and sheath of elevator steel belt;

Supply basis: According to customer’s technical drawings;

Insulation extrusion material:TPU;

Finished outer diameter:MAX 8*60mm;

Design line speed of production line (Belt type caterpillar traction):Max30m/min;

Crosshead center height:1000mm;



Prodction Line Main Parts:

1. Multi-head Motorized pay-off

2. Extruder

3. Flat cable double layer co-extrusion crosshead

4. Steel belt pre-forming device

5. OD Tester

6. Cooling Water Trough

7. Meter Counter

8. Belt type caterpillar capstan

9. Accumulator

10. Portal type takeup



Production line control systems:

1. The whole machine is controlled by Siemens S7-1500PLC programmable controller, which is operated on the industrial computer display and operation panel;

2. Using profibus bus (communication bus), convenient man-machine communication and control. The whole system is controlled with the screw speed as the benchmark, the caliper participates in the whole line control, and the PLC controls the change of the traction speed according to the change of the outer diameter fluctuation to ensure that the outer diameter of the cable is same;

3. Different production process control parameters are stored in the computer and can be displayed and called on the display screen collectively. The industrial control machine is adopted, and the modification of the control parameters of the man-machine interface is convenient and practical. Can make the entire production line centralized control, easy to realize single and linkage adjustment;

4. The temperature control adopts Japanese RKC module to communicate with PLC (or the temperature control adopts thermocouple to connect directly to PLC simulation module). It has a separate temperature control interface and an environmental temperature reference point. And has PID tuning function; Calibration of the actual temperature and PC interface temperature display accuracy has a setting function. Display error can be corrected; Power control adopts pioneer solid state relay;

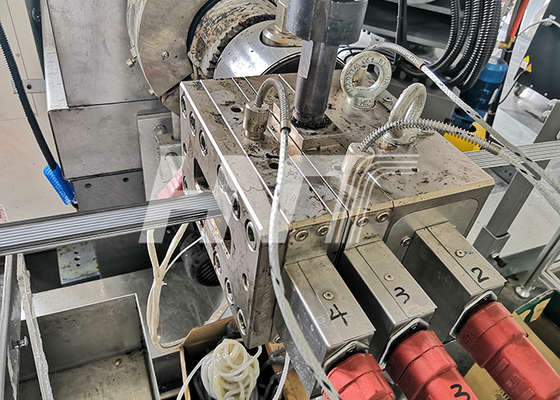

Elevator Travelling Cable Extruder Machine TPU Extrusion 0
